125A5R169M16-ISTN10-C

125A5R169M16-ISTN10-C

SKU DOR7276942
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$409.00 - $409.00
$409.00
$409.00 - $409.00
$409.00

Sold in packs of: 1

Shoulder face mill with double negative geometry which utilises 5 off TNGX 1004.. double-sided inserts, cutting diameter 1.250'' with 90° approach angle and M16 threaded shank for standard modular tool-holders, 1.693'' protrusion length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A5R169M16-ISTN10-C
Product Number7276942
Product FamilyISTN10

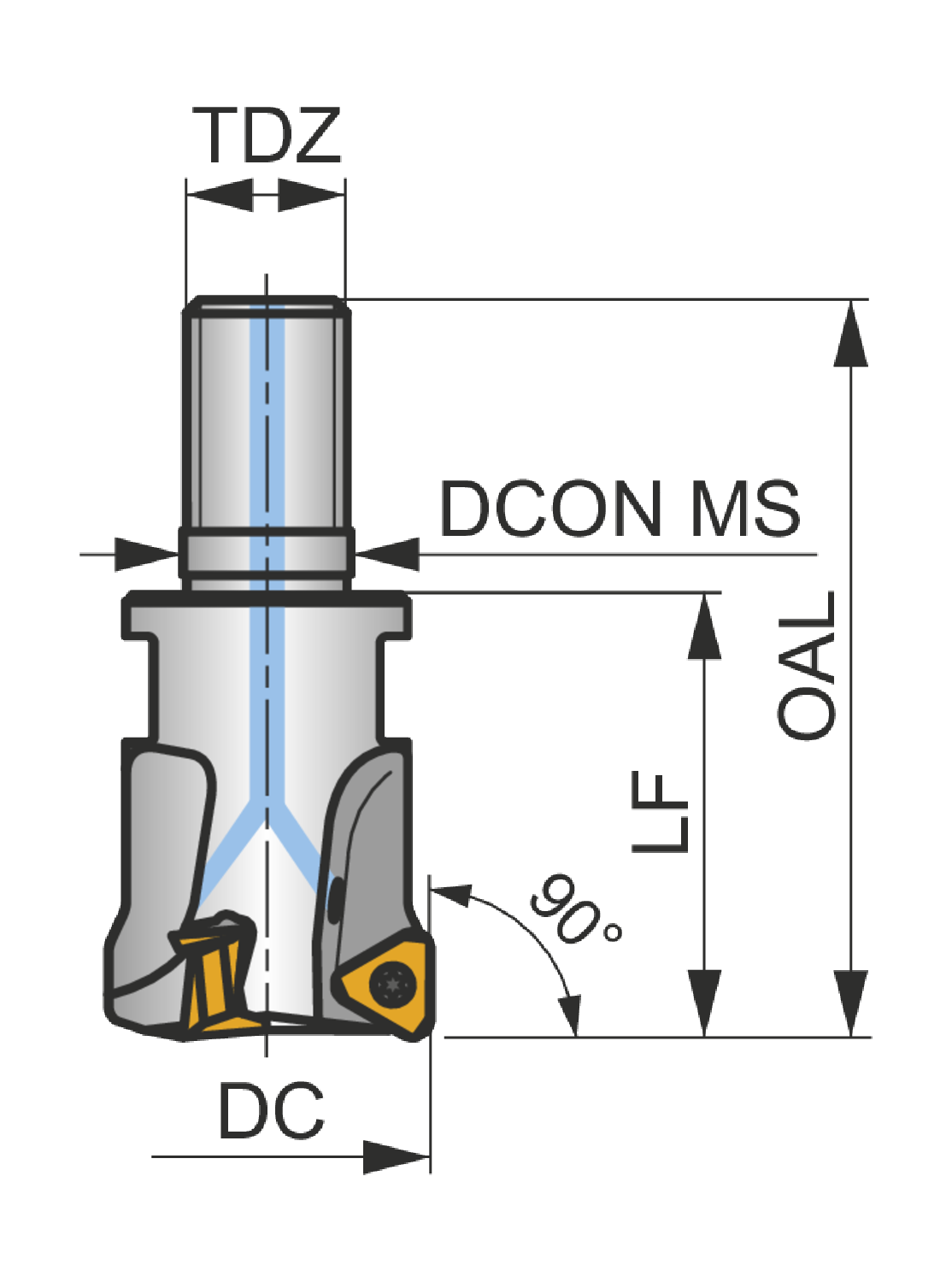

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.8 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — in (LF)1.693"
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSTN10
ShankThreaded coupling
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number7276942
EAN3603603242258
File Type Download
125A5R169M16-ISTN10-C — 3D Model STP Download
125A5R169M16-ISTN10-C — 2D Model DXF Download
125A5R169M16-ISTN10-C — Line Drawing PDF Download
