RDMT 1003MOT:M8345

RDMT 1003MOT:M8345

SKU DOR7343098
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.47 - $15.47
$15.47
$15.47 - $15.47
$15.47

Sold in packs of: 10

Single-sided milling insert RDMT 1003 with chip-breakers, round for a maximum depth of cut of .0984", with " corner radius, an indexing accuracy according to ISO-tolerance class-M with cutting edges with facet, M8345 PVD coated WC-Co carbide within ISO-grade range P30-P50 for machining of steel with copy face mills SRD10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDMT 1003MOT:M8345
GradeM8345
Chipbreaker (CBMD)With chipbreaker -no designation
Product Number7343098
Product FamilyRDMT 10
Insert Geometry
Insert DesignRDMT
Insert Shape Code (SC)R - round
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7343098
EAN3603603288713
File Type Download

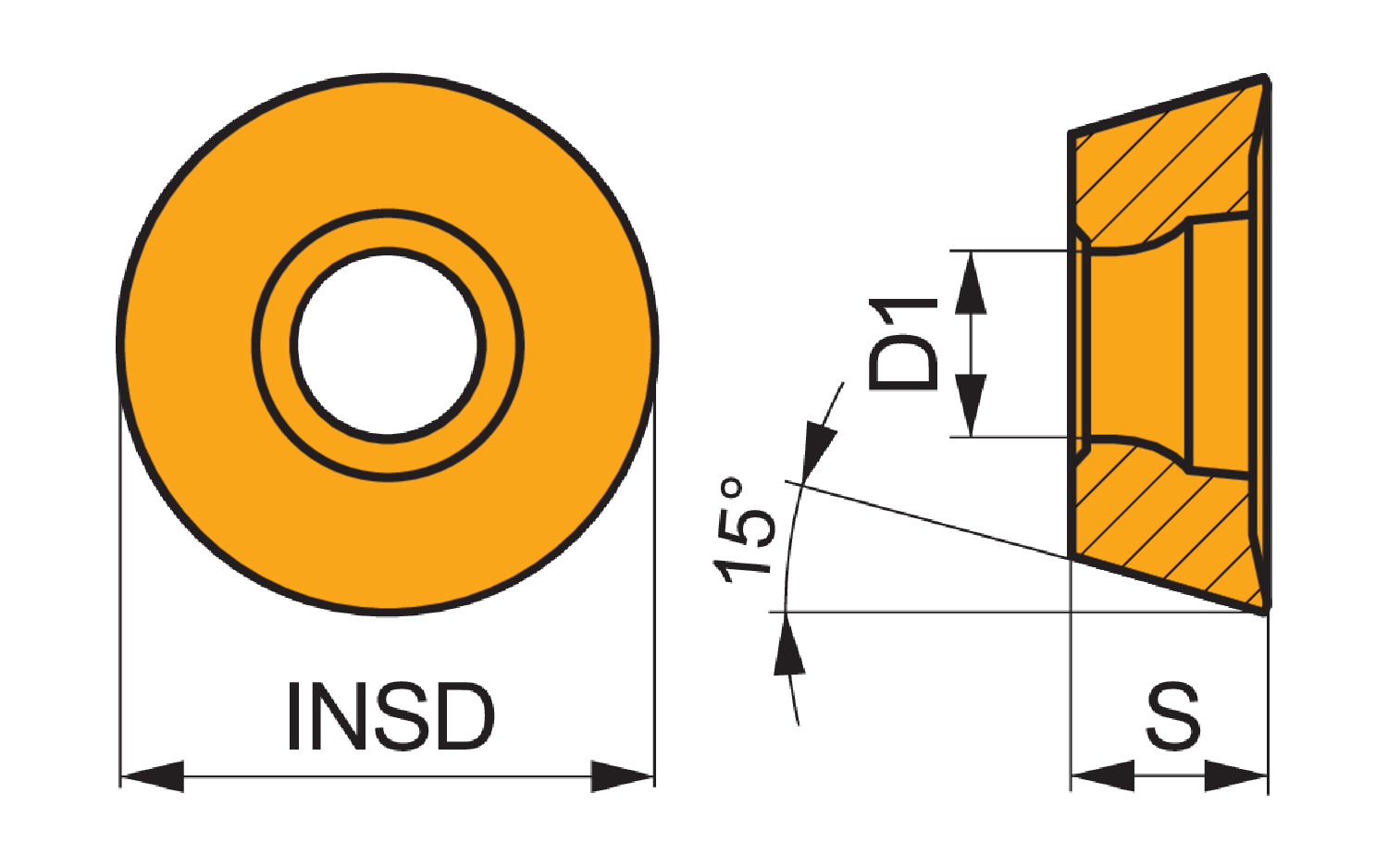

RDMT 1003MOT:M8345 — Line Drawing PDF Download
