APET 150412EN:M8330

APET 150412EN:M8330

SKU DOR7447826
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.34 - $33.34
$33.34
$33.34 - $33.34
$33.34

Sold in packs of: 10

Single-sided milling insert APET 1504 with chip-breakers, 85° parallelogram for a maximum depth of cut of .4724", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills with extended flute J(T)-SSAP

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)APET 150412EN:M8330
GradeM8330
Chipbreaker (CBMD)With chipbreaker -no designation
Product Number7447826
Product FamilyAPET 15
Insert Geometry
Insert DesignAPET
Insert Shape Code (SC)A - parallelogram 85° included angle
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number7447826
EAN3603603385405
File Type Download

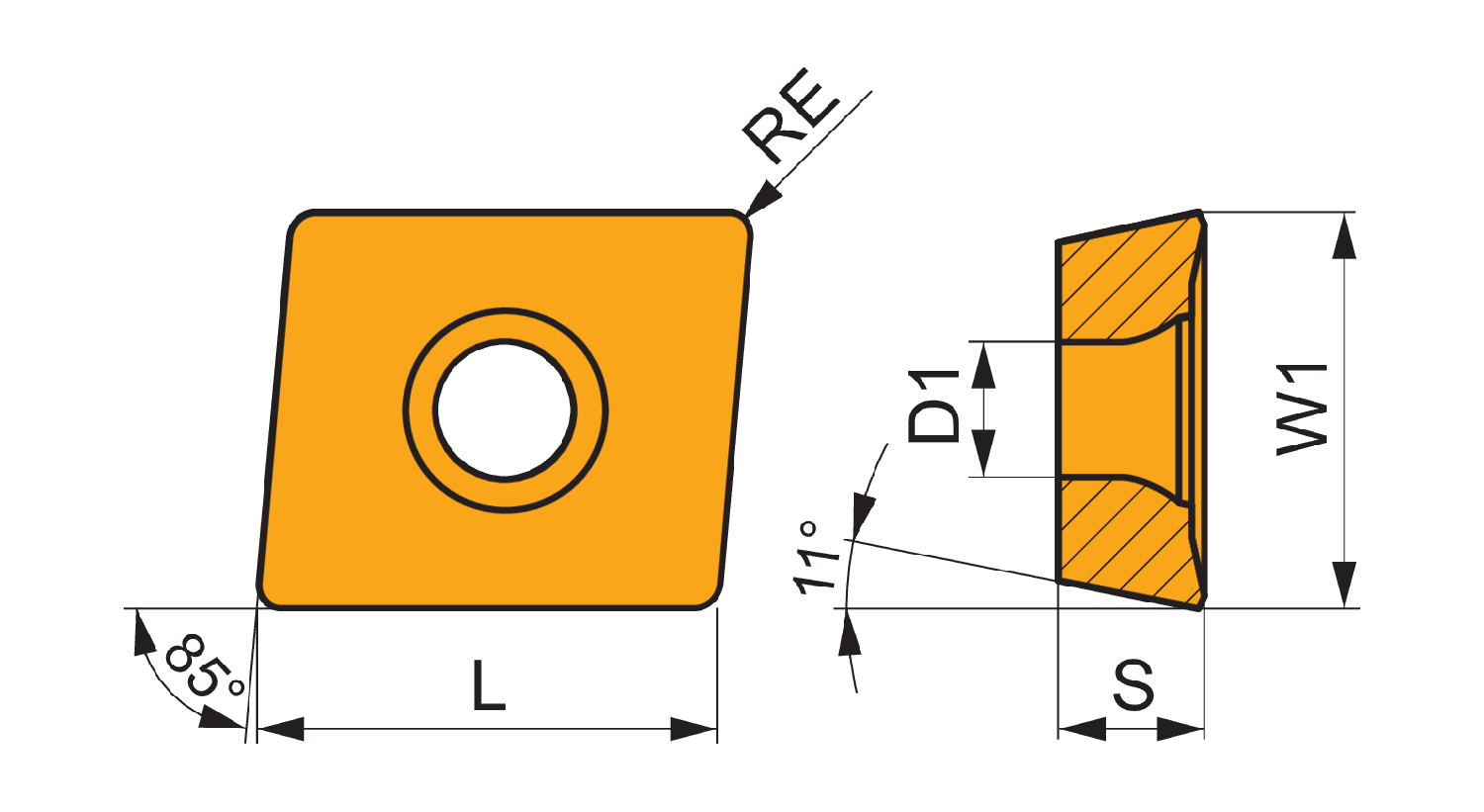

APET 150412EN:M8330 — Line Drawing PDF Download
