CNHQ 1005AZTN:M8330

CNHQ 1005AZTN:M8330

SKU DOR7447875
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.77 - $45.77
$45.77
$45.77 - $45.77
$45.77

Sold in packs of: 10

Double-sided disc milling insert, for a cutting width of .5512" to maximum .7283" with cutting edges with facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with disc mills S90CN(XN)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNHQ 1005AZTN:M8330
GradeM8330
Chipbreaker (CBMD)With chipbreaker -no designation
Product Number7447875
Product FamilyCNHQ

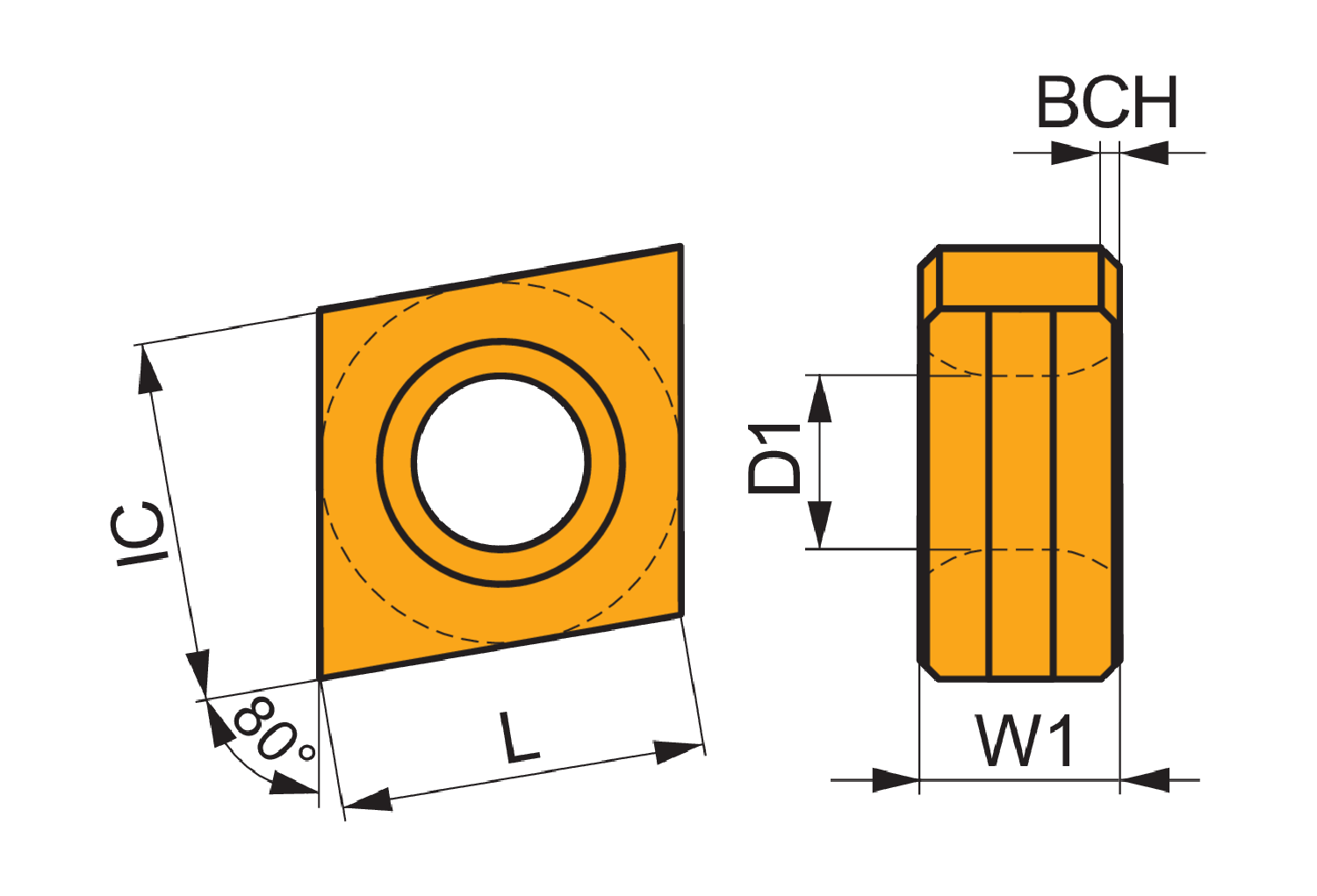

Insert Geometry
Insert DesignCNHQ
Insert Shape Code (SC)C - rhombic 80° included angle
Inscribed Circle Dia. — in (IC)0.394"
Inscribed Circle Dia. — mm (IC)10.0 mm
Tool Information
Reference Numbers
EDP Number7447875
EAN3603603385542
File Type Download
CNHQ 1005AZTN:M8330 — Line Drawing PDF Download
