LNET 160616SR-R:M8330

LNET 160616SR-R:M8330

SKU DOR7447895
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.90 - $33.90
$33.90
$33.90 - $33.90
$33.90

Sold in packs of: 10

Single-sided milling insert LNET 1606 with chip-breakers, rectangular for a maximum depth of cut of .5906", with .063" corner radius, an indexing accuracy according to ISO-tolerance class-E and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills with extended flute J(T)-SLSN

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNET 160616SR-R:M8330
GradeM8330
Chipbreaker (CBMD)R
Product Number7447895
Product FamilyLNET 16

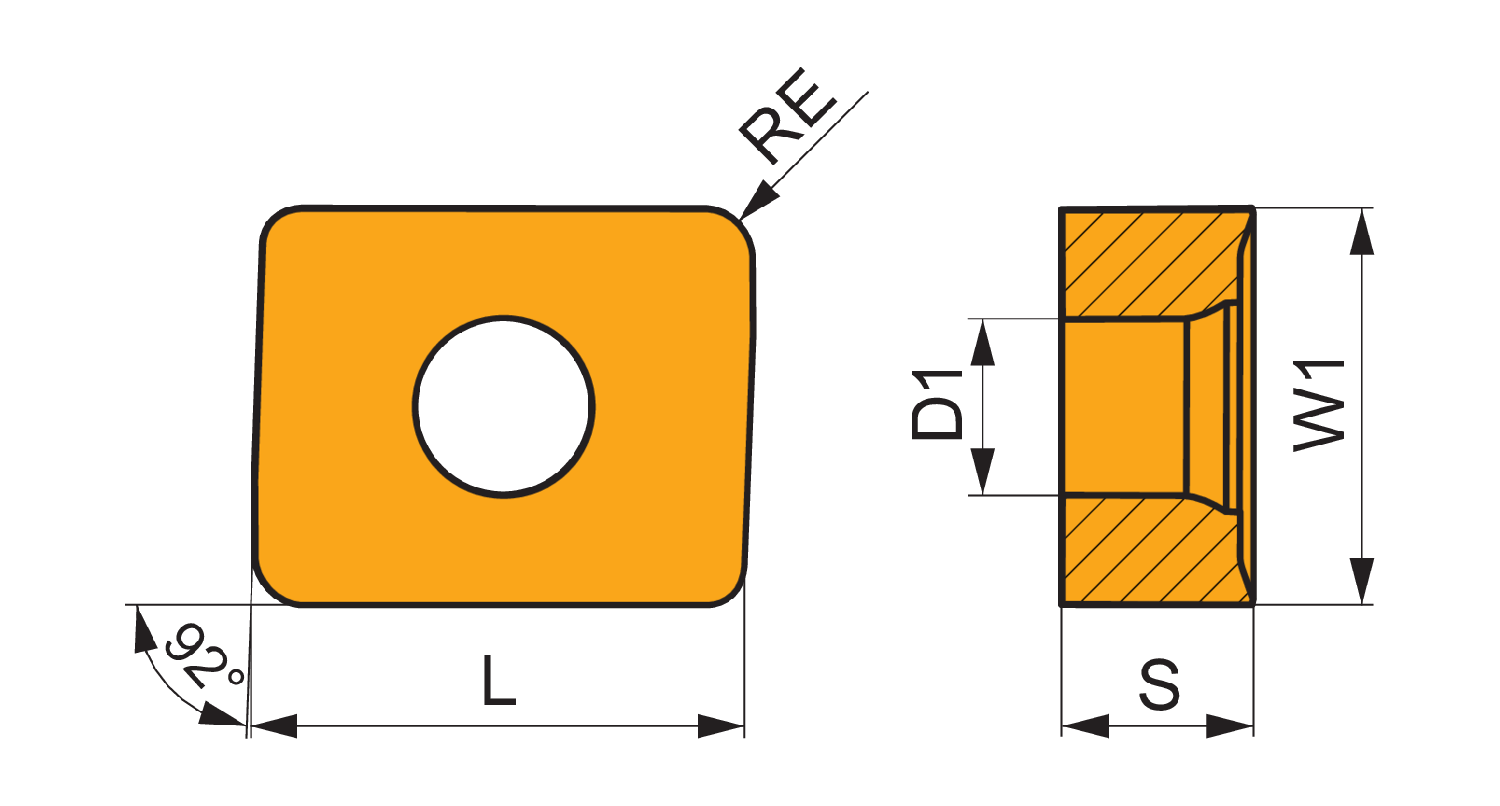

Insert Geometry
Insert DesignLNET
Insert Shape Code (SC)L - rectangular
Insert Thickness — in (S)0.251"
Insert Thickness — mm (S)6.38 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number7447895
EAN3603603385641
File Type Download
LNET 160616SR-R:M8330 — Line Drawing PDF Download
