LNMU 160708SR-M:M8330

LNMU 160708SR-M:M8330

SKU DOR7447909
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.37 - $28.37
$28.37
$28.37 - $28.37
$28.37

Sold in packs of: 10

Double-sided milling insert LNMU 1607 with chip-breakers, rectangular for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills SLN16

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNMU 160708SR-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7447909
Product FamilyLNMU 16

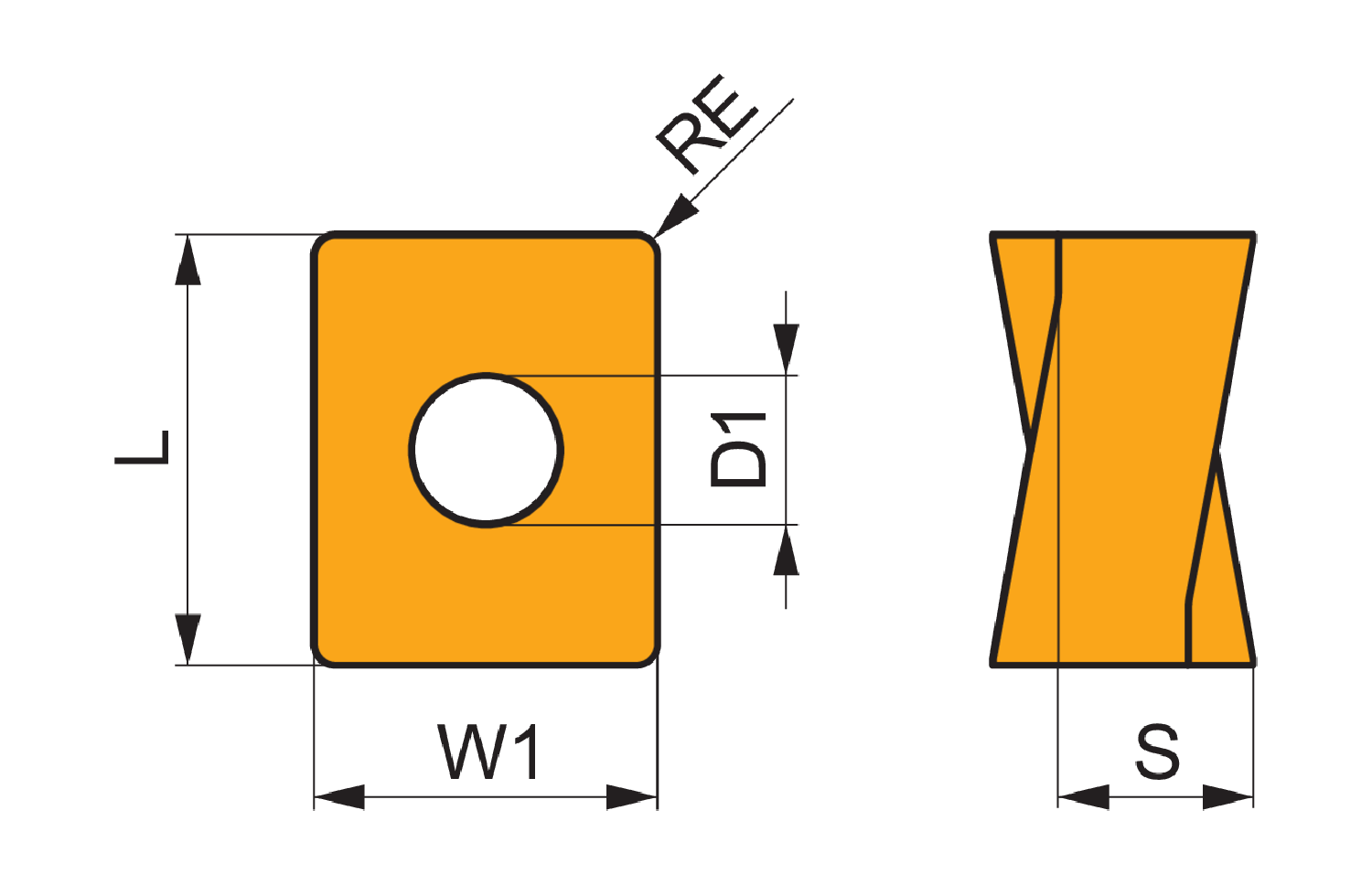

Insert Geometry
Insert DesignLNMU
Insert Shape Code (SC)L - rectangular
Insert Thickness — in (S)0.295"
Insert Thickness — mm (S)7.5 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number7447909
EAN3603603385788
File Type Download
LNMU 160708SR-M:M8330 — Line Drawing PDF Download
