ODEW 0605ZZN:M8330

ODEW 0605ZZN:M8330

SKU DOR7447915
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.57 - $26.57
$26.57
$26.57 - $26.57
$26.57

Sold in packs of: 10

Single-sided milling insert ODEW 0605 with a plane rake surface, octagonal for a maximum depth of cut of .122", with " corner radius, an indexing accuracy according to ISO-tolerance class-E, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with face mills SOD06D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ODEW 0605ZZN:M8330
GradeM8330
Chipbreaker (CBMD)No chipbreaker
Product Number7447915
Product FamilyODEW 06

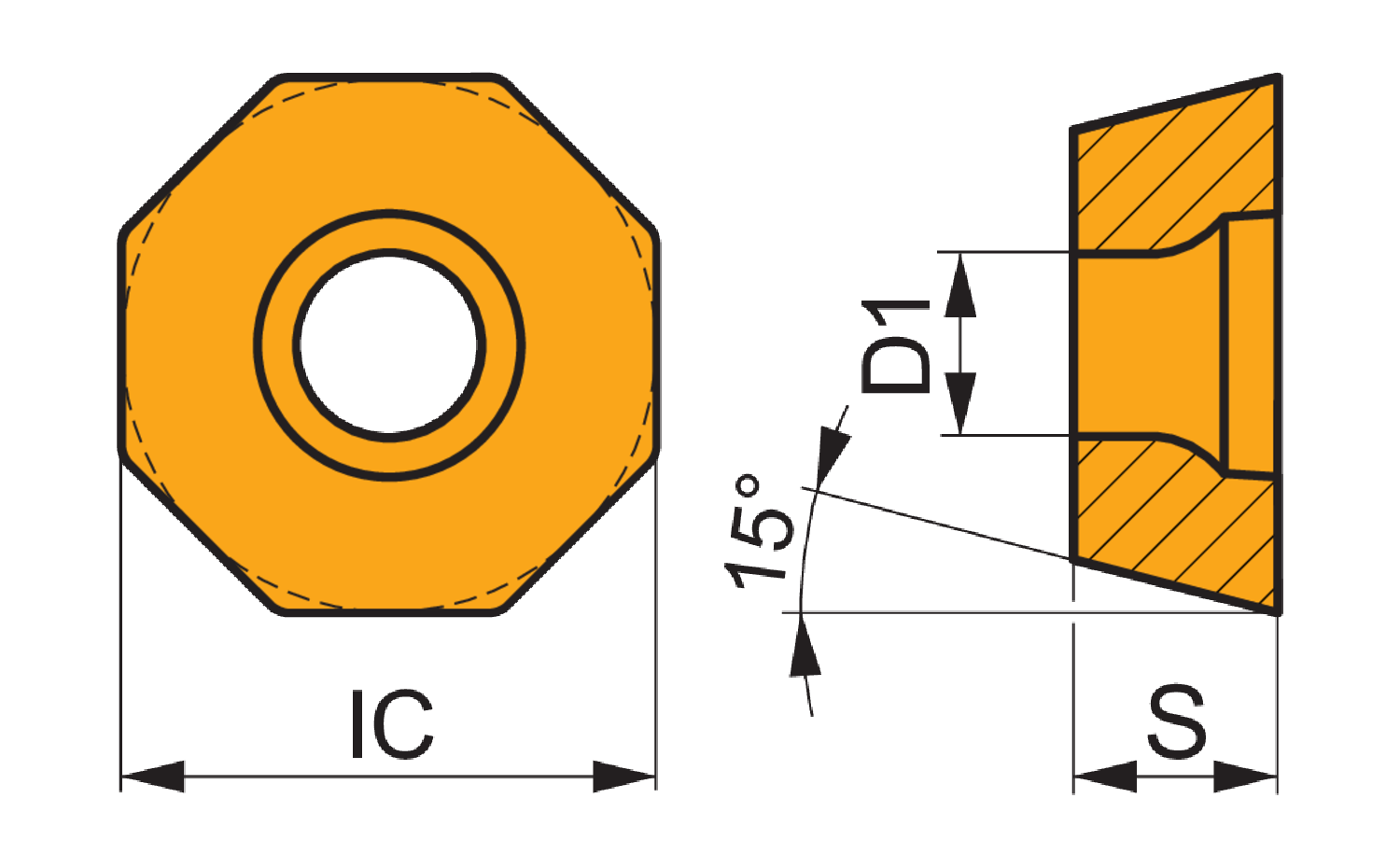

Insert Geometry
Insert DesignODEW
Insert Shape Code (SC)O - octagonal
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Depth of Cut Max — in (APMX)0.122"
Depth of Cut Max — mm (APMX)3.1 mm
Tool Information
Reference Numbers
EDP Number7447915
EAN3603603385849
File Type Download
ODEW 0605ZZN:M8330 — Line Drawing PDF Download
