REHT 1604M0SN-M:M8330

REHT 1604M0SN-M:M8330

SKU DOR7447961
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.46 - $25.46
$25.46
$25.46 - $25.46
$25.46

Sold in packs of: 10

Single-sided milling insert REHT 1604 with chip-breakers, round for a maximum depth of cut of .1575", with " corner radius, an indexing accuracy according to ISO-tolerance class-H and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills SOE06Z

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)REHT 1604M0SN-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7447961
Product FamilyREHT 16
Insert Geometry
Insert DesignREHT
Insert Shape Code (SC)R - round
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number7447961
EAN3603603386174
File Type Download

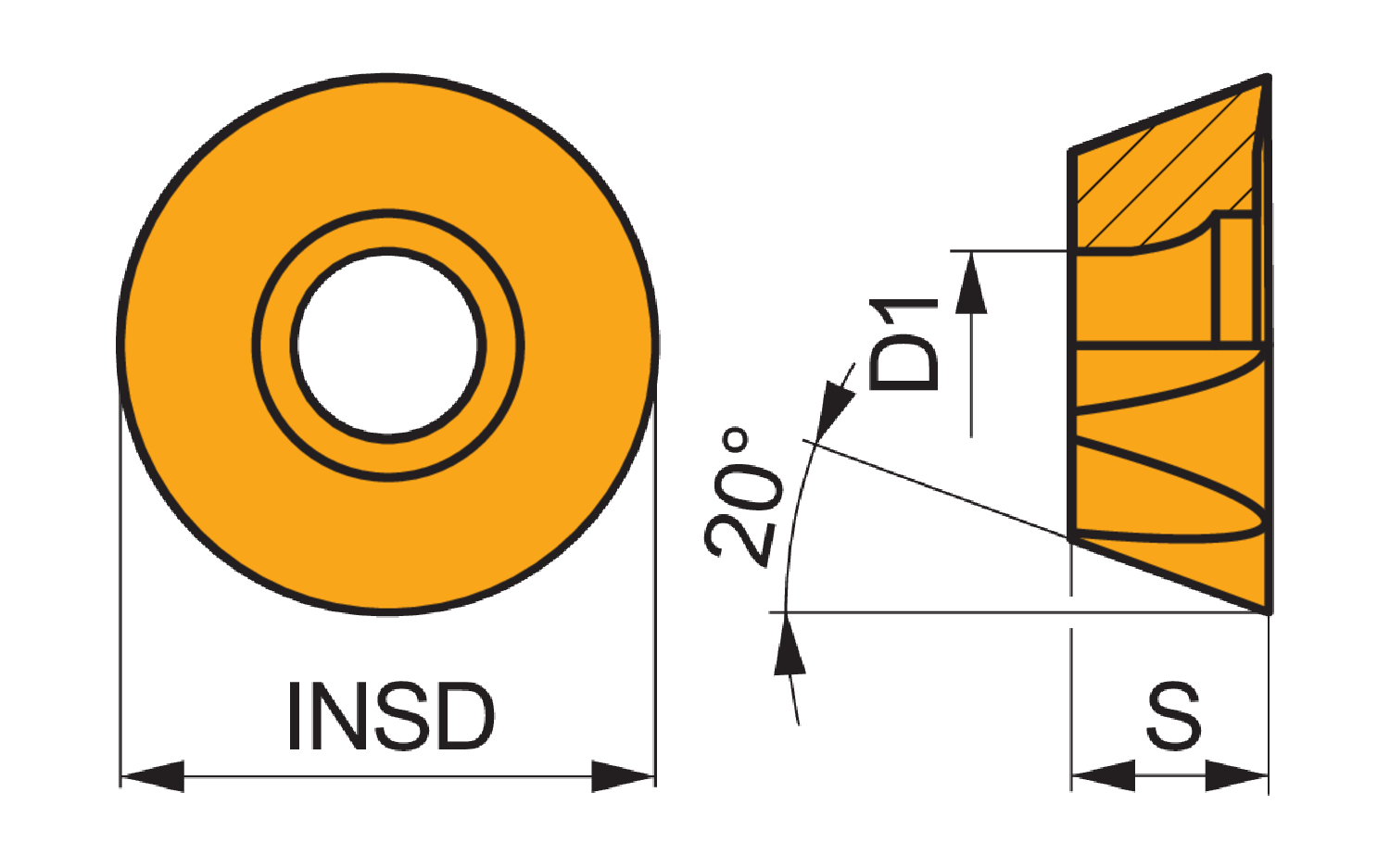

REHT 1604M0SN-M:M8330 — Line Drawing PDF Download
