RPET 1505MOS-M:M8330

RPET 1505MOS-M:M8330

SKU DOR7447965
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.94 - $24.94
$24.94
$24.94 - $24.94
$24.94

Sold in packs of: 10

Single-sided milling insert RPET 1505 with chip-breakers, round for a maximum depth of cut of .1378", with " corner radius, an indexing accuracy according to ISO-tolerance class-E and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills SOD06D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RPET 1505MOS-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7447965
Product FamilyRPET 15
Insert Geometry
Insert DesignRPET
Insert Shape Code (SC)R - round
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number7447965
EAN3603603386211
File Type Download

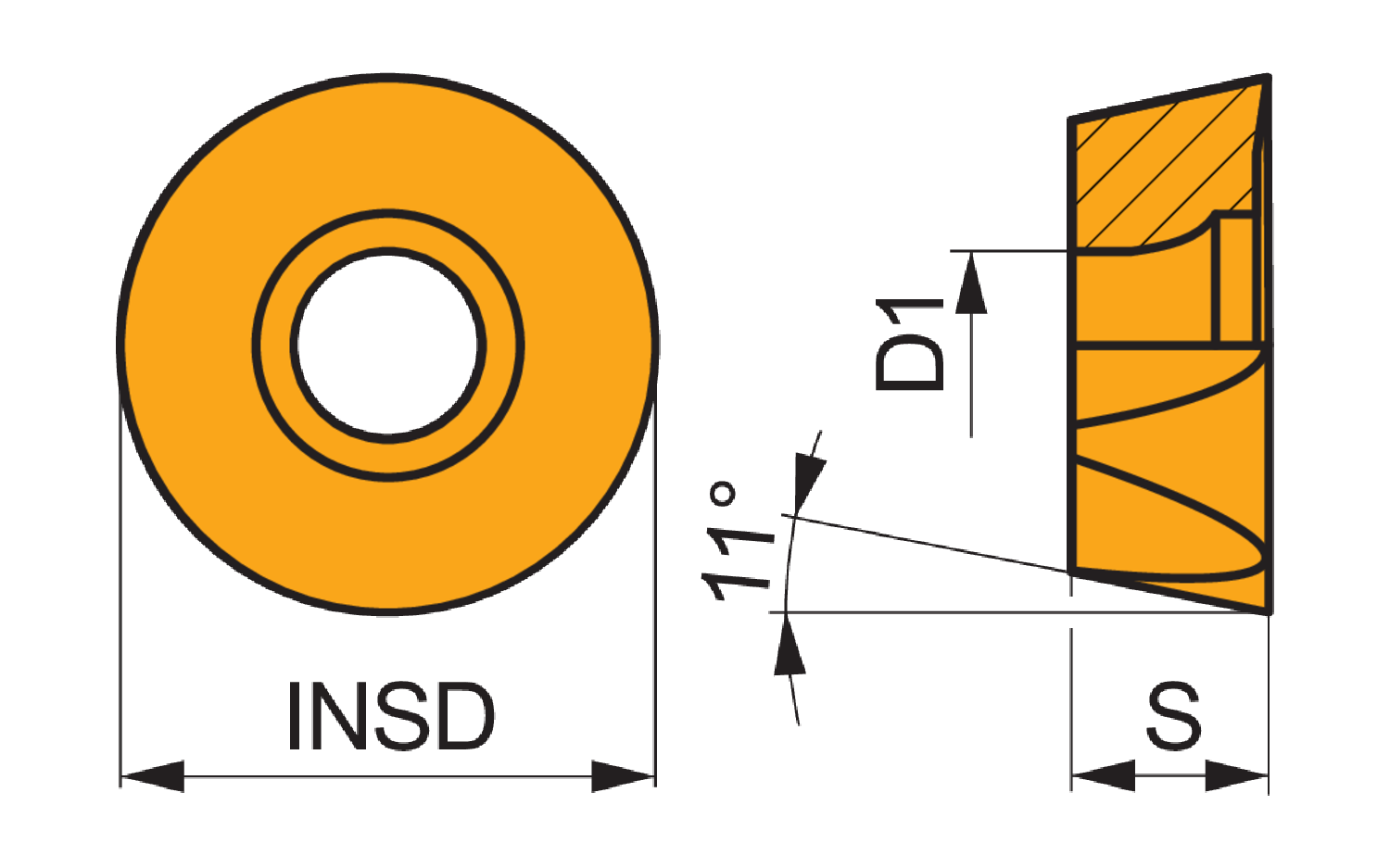

RPET 1505MOS-M:M8330 — Line Drawing PDF Download
