SDEX 322FN-74:M8330

SDEX 322FN-74:M8330

SKU DOR7447973
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.01 - $17.01
$17.01
$17.01 - $17.01
$17.01

Sold in packs of: 10

Single-sided milling insert SDEX 0903, square for a maximum depth of cut of .1772", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-E and 74 geometry with sharp cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with chamfer mills SSD09

For more information about this product, click here

Identification
Ordering Code (ANSI)SDEX 322FN-74:M8330
Product Name (ISO)SDEX 090308FN-74:M8330
GradeM8330
Chipbreaker (CBMD)74
Product Number7447973
Product FamilySDEX 09

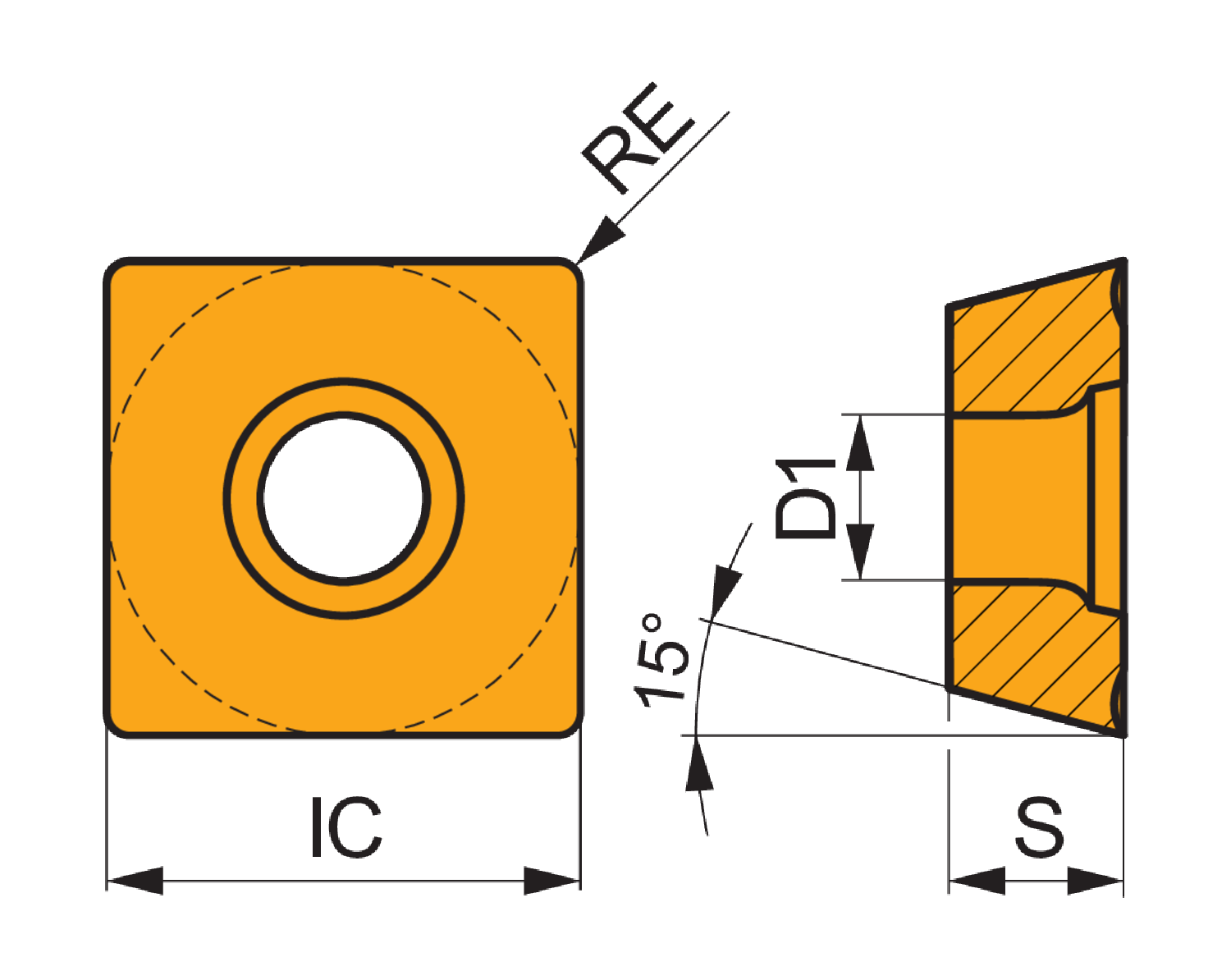

Insert Geometry
Insert DesignSDEX
Insert Shape Code (SC)S - square
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number7447973
EAN3603603386297
File Type Download
SDEX 322FN-74:M8330 — Line Drawing PDF Download
