SDMT 120508PR-R:M8330
SDMT 120508PR-R:M8330

SDMT 120508PR-R:M8330

SKU DOR7447977
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.46 CAD - $25.46 CAD
$25.46 CAD
$25.46 CAD - $25.46 CAD
$25.46 CAD

Sold in packs of: 10

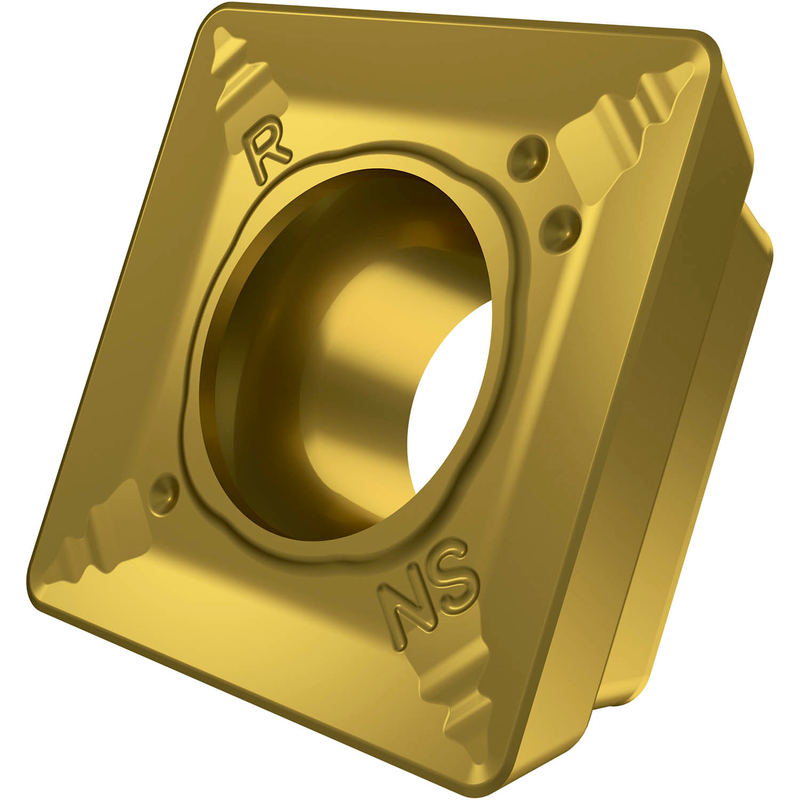

Single-sided milling insert SDMT 1205 with chip-breakers, square for a maximum depth of cut of .3937", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and double facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills SSD12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDMT 120508PR-R:M8330
GradeM8330
Chipbreaker (CBMD)R
Product Number7447977
Product FamilySDMT 12

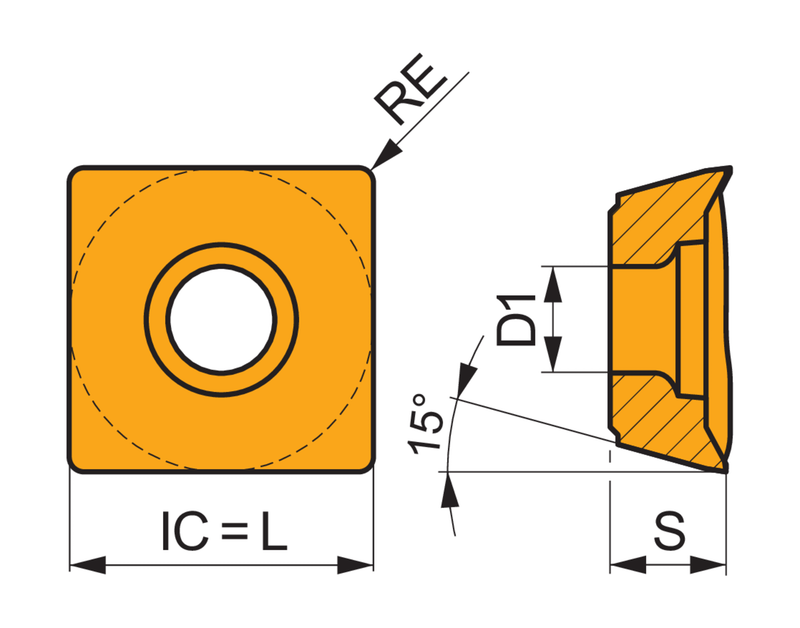

Insert Geometry
Insert DesignSDMT
Insert Shape Code (SC)S - square
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number7447977
EAN3603603386334
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download
SDMT 120508PR-R:M8330 — Line Drawing PDF Download
