SOMT 050208SR-M:M8330

SOMT 050208SR-M:M8330

SKU DOR7451033
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.23 - $17.23
$17.23
$17.23 - $17.23
$17.23

Sold in packs of: 10

Single-sided milling insert SOMT 0502 with chip-breakers, square for a maximum depth of cut of .1772", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder face mills SSO05O

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SOMT 050208SR-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7451033
Product FamilySOMT 05

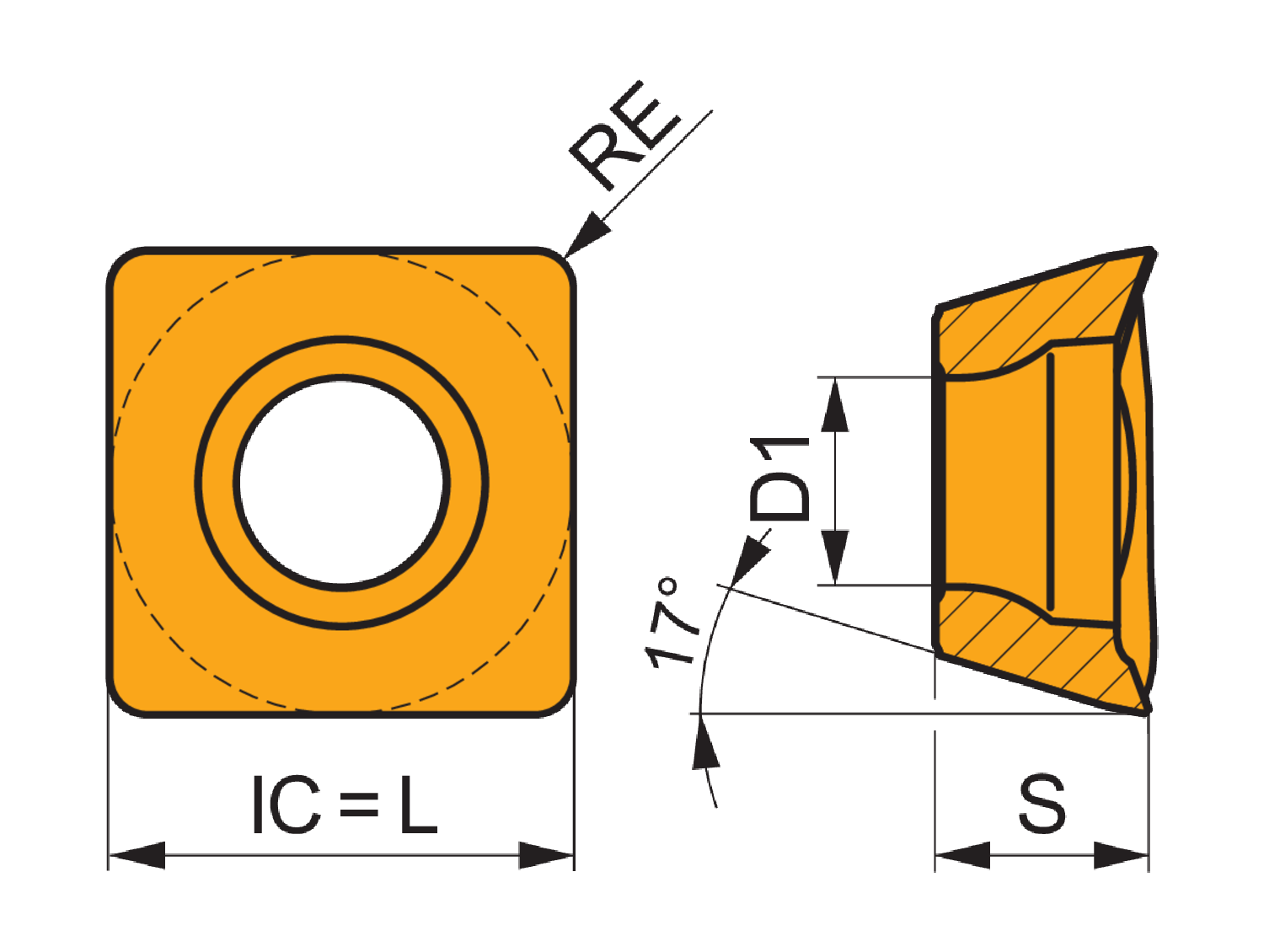

Insert Geometry
Insert DesignSOMT
Insert Shape Code (SC)S - square
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.57 mm
Insert Thickness — in (S)0.104"
Insert Thickness — mm (S)2.63 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number7451033
EAN3603603389427
File Type Download
SOMT 050208SR-M:M8330 — Line Drawing PDF Download
