TPCN 32PDSN:M8330

TPCN 32PDSN:M8330

SKU DOR7451104
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.90 - $16.90
$16.90
$16.90 - $16.90
$16.90

Sold in packs of: 10

Single-sided milling insert TPCN 1603 with a plane rake surface, triangular for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-C with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI)TPCN 32PDSN:M8330
Product Name (ISO)TPCN 1603PDSN:M8330
GradeM8330
Chipbreaker (CBMD)No chipbreaker
Product Number7451104
Product FamilyTPCN 16

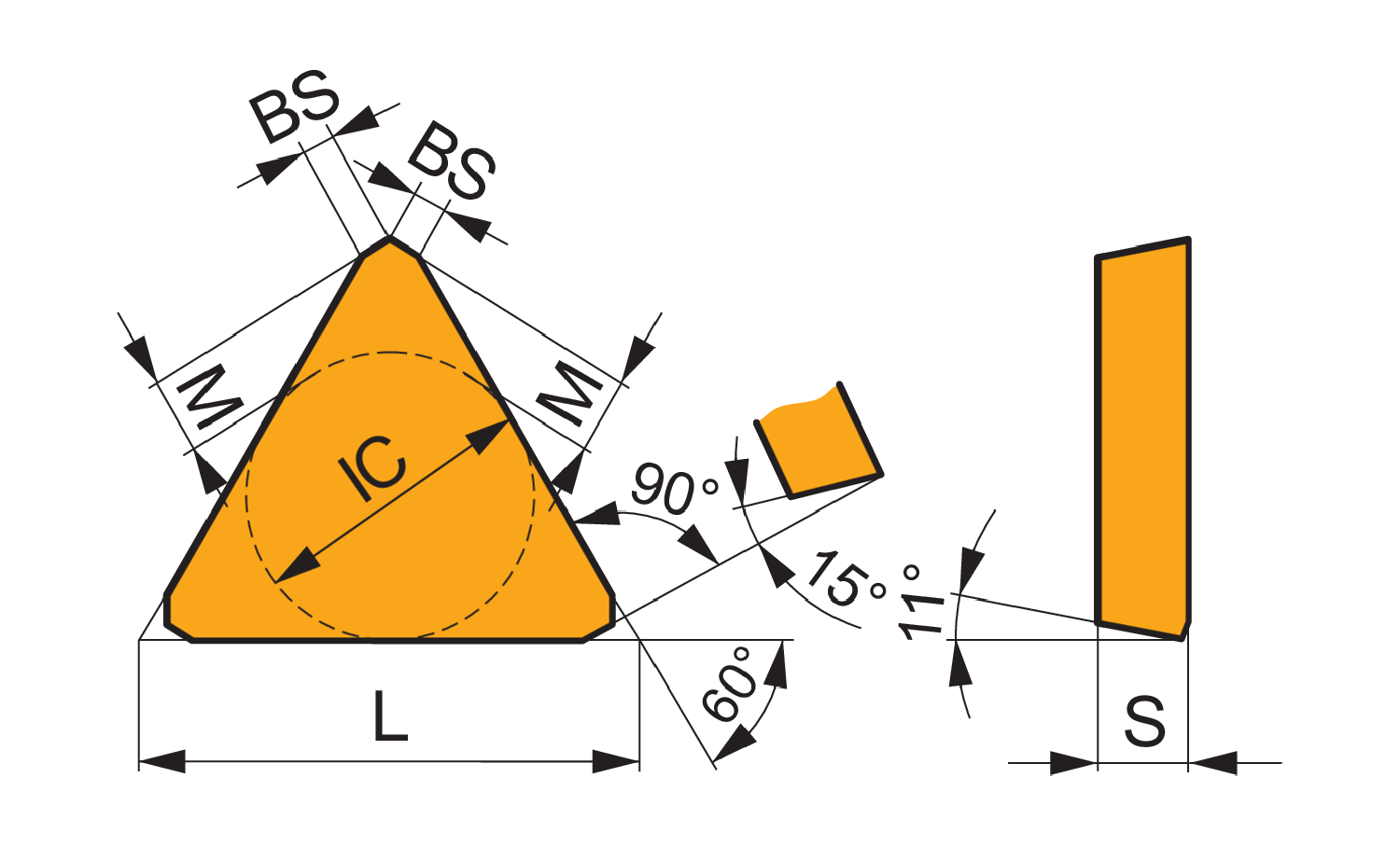

Insert Geometry
Insert DesignTPCN
Insert Shape Code (SC)T - triangular 60° included angle
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Tool Information
Reference Numbers
EDP Number7451104
EAN3603603389724
File Type Download
TPCN 32PDSN:M8330 — Line Drawing PDF Download
