SB-20DC

SB-20DC

SKU PRE7466231
by Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.06 - $21.06
$21.06
$21.06 - $21.06
$21.06

Sold in packs of: 1

Cylinder burr with end cut (B shape), diameter 5/16" with 3/4" length of cut, 2.1/2" overall length and 1/4" shank, carbide tipped with toughened and hardened steel shank and bright finish, DC double cut flute style with close spaced edges for machining surfaces and right-angled corners in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SB-20DC
GradeBright
Product Number7466231
Product FamilySB-DC
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional5/16
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — mm (LU)19.05 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankCylindrical shank
Reference Numbers
EDP Number7466231
EAN7320760787014
File Type Download

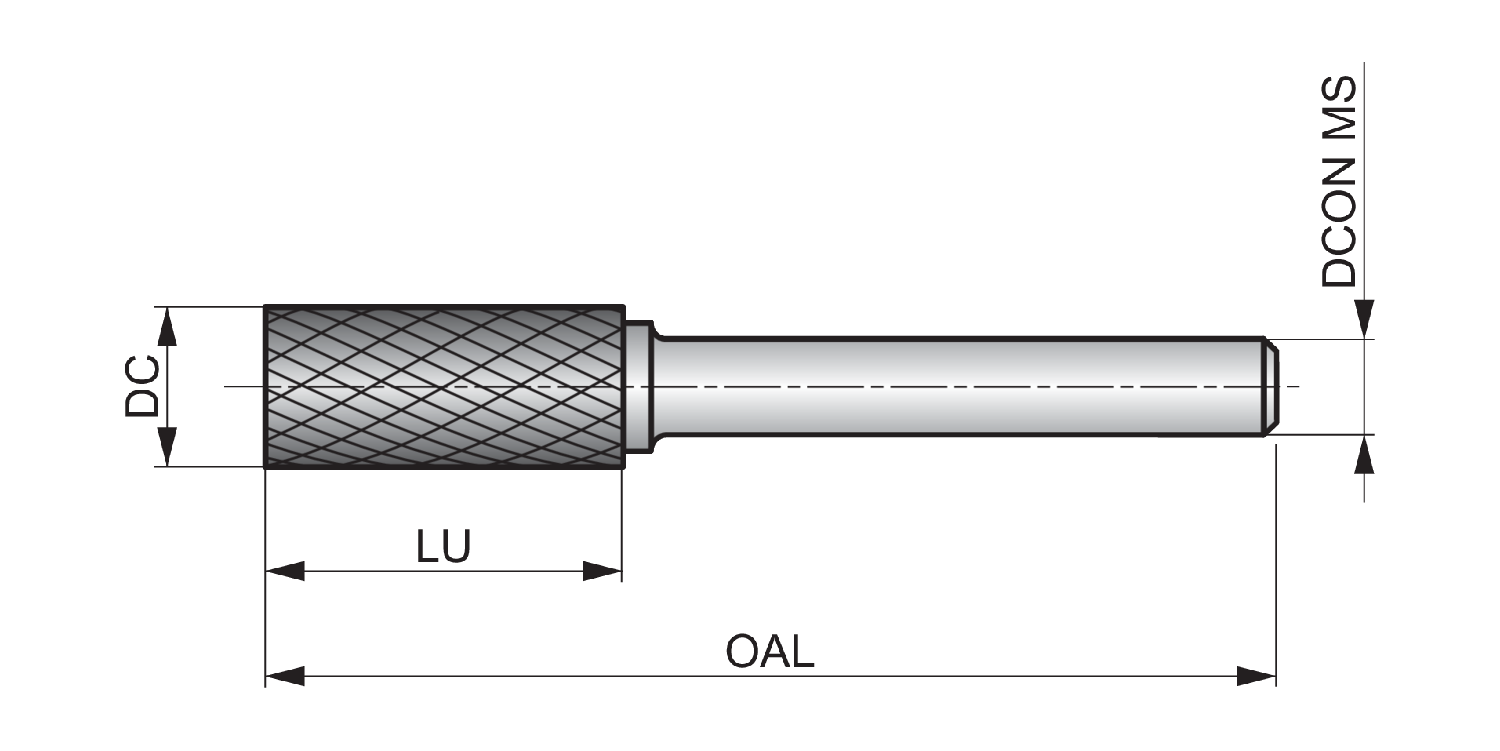

SB-20DC — Line Drawing PDF Download
