SB-50FM

SB-50FM

SKU PRE7466243
by Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.36 - $46.36
$46.36
$46.36 - $46.36
$46.36

Sold in packs of: 1

Cylinder burr with end cut (B shape), diameter 1/2" with 1" length of cut, 2.3/4" overall length and 1/4" shank, carbide tipped with toughened and hardened steel shank and bright finish, FM single cut flute style with wide speced edges for machining surfaces and right-angled corners in wrought, cast aluminium and glass fibre reinforced polymers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SB-50FM
GradeBright
Product Number7466243
Product FamilySB-FM

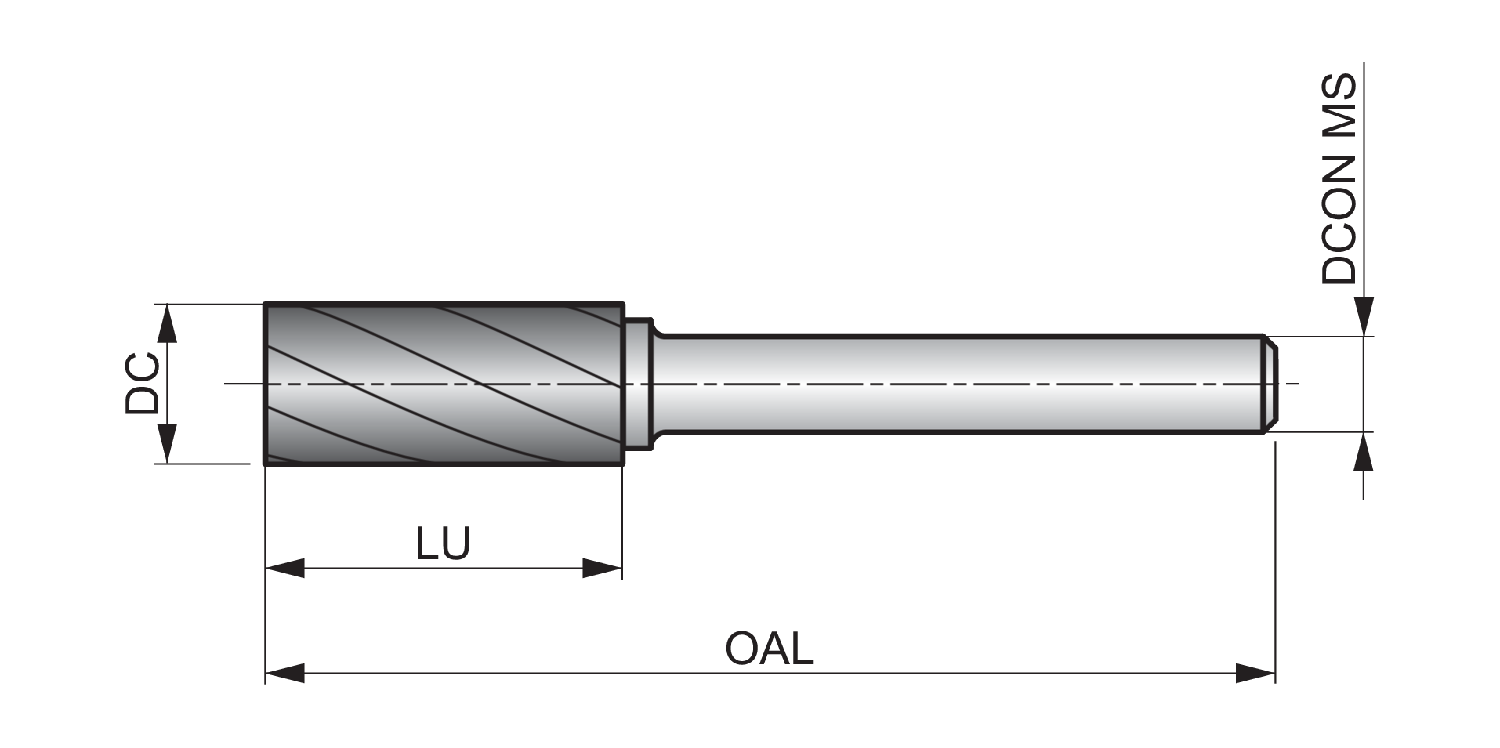

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankCylindrical shank
Reference Numbers
EDP Number7466243
EAN7320760787137
File Type Download
SB-50FM — Line Drawing PDF Download
