SC-02MDC

SC-02MDC

SKU PRE7466248
by Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.66 - $17.66
$17.66
$17.66 - $17.66
$17.66

Sold in packs of: 1

Cylinder burr with ball nose (C shape), diameter 1/8" with 5/8" length of cut, 2" overall length and 1/4" shank, solid carbide with bright finish, DC double cut flute style with close spaced edges for machining contours and circular arcs in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-02MDC
GradeBright
Product Number7466248
Product FamilySC-DC
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Usable Length — mm (LU)15.88 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankCylindrical shank
Reference Numbers
EDP Number7466248
EAN7320760787182
File Type Download

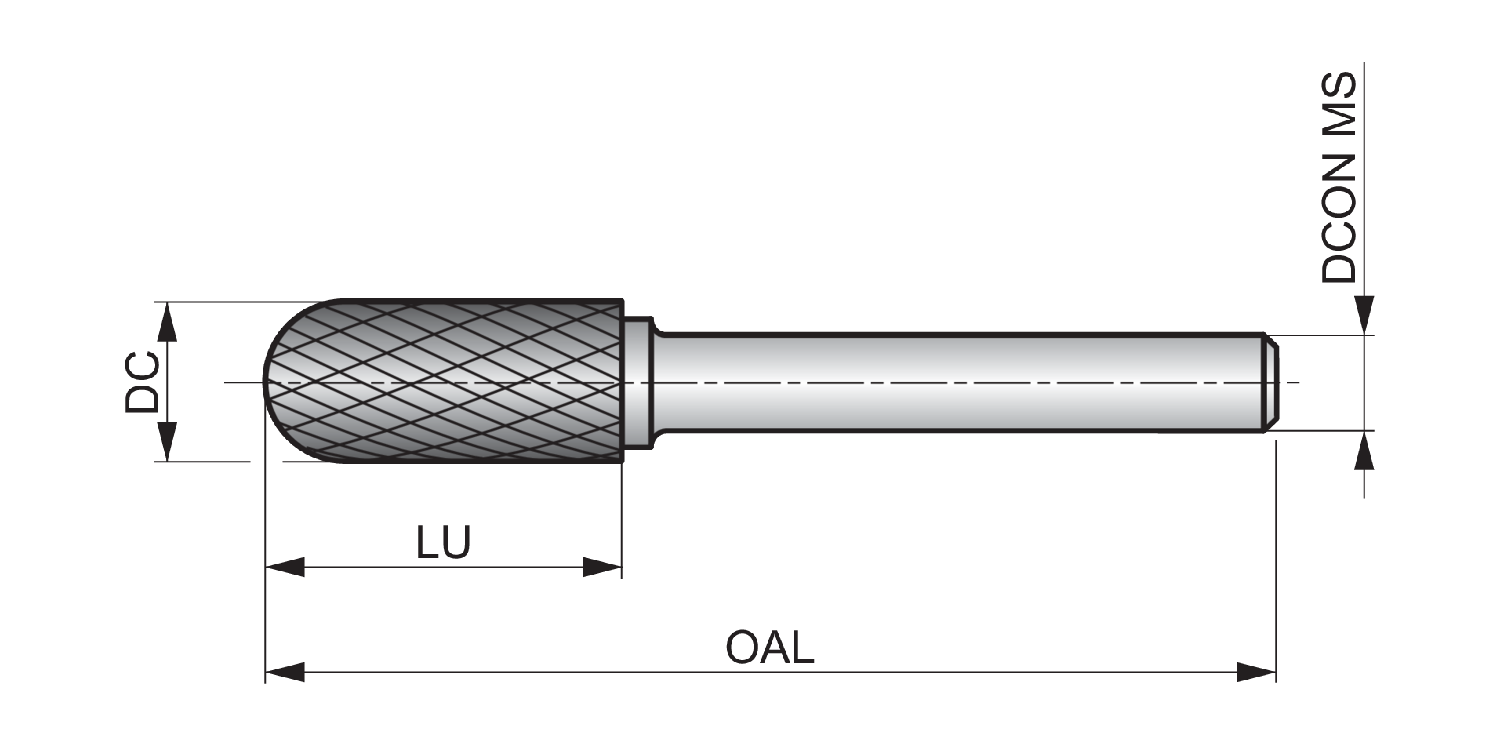

SC-02MDC — Line Drawing PDF Download
