SC-30FM

SC-30FM

SKU PRE7466264
by Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.46 - $29.46
$29.46
$29.46 - $29.46
$29.46

Sold in packs of: 1

Cylinder burr with ball nose (C shape), diameter 3/8" with 3/4" length of cut, 2.1/2" overall length and 1/4" shank, carbide tipped with toughened and hardened steel shank and bright finish, FM single cut flute style with wide speced edges for machining contours and circular arcs in wrought, cast aluminium and glass fibre reinforced polymers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SC-30FM
GradeBright
Product Number7466264
Product FamilySC-FM
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — mm (LU)19.05 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankCylindrical shank
Reference Numbers
EDP Number7466264
EAN7320760787342
File Type Download

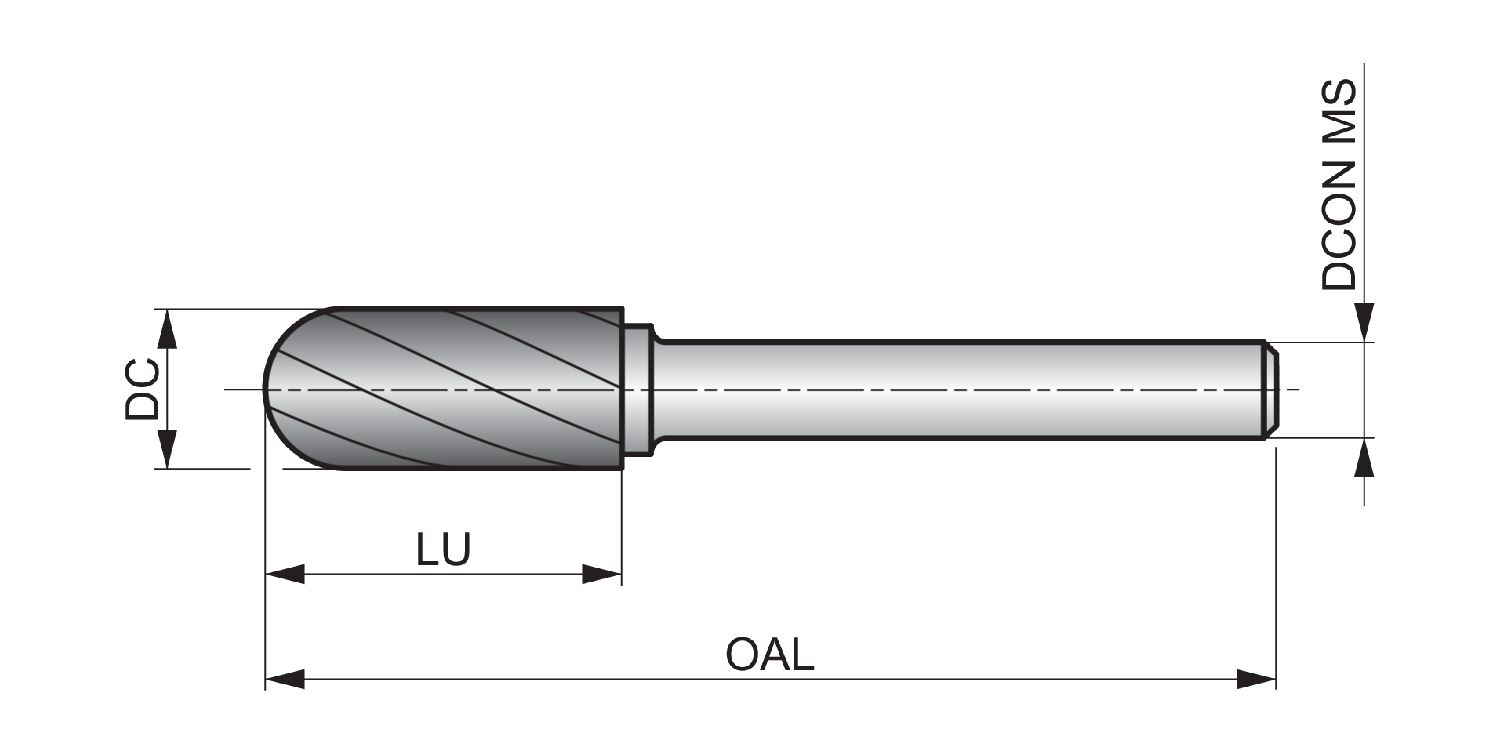

SC-30FM — Line Drawing PDF Download
