SN-02DC

SN-02DC

SKU PRE7466371
by Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.13 - $8.13
$8.13
$8.13 - $8.13
$8.13

Sold in packs of: 1

Inverted cone burr (N shape), diameter 1/8" with 3/16" length of cut, 1.1/2" overall length and 1/8" shank, solid carbide with bright finish, DC double cut flute style with close spaced edges for making inverted v-cuts and rear-side chamfering in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SN-02DC
GradeBright
Product Number7466371
Product FamilySN-DC
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Usable Length — mm (LU)4.76 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)10°
Tool Information
ShankCylindrical shank
Reference Numbers
EDP Number7466371
EAN7320760788417
File Type Download

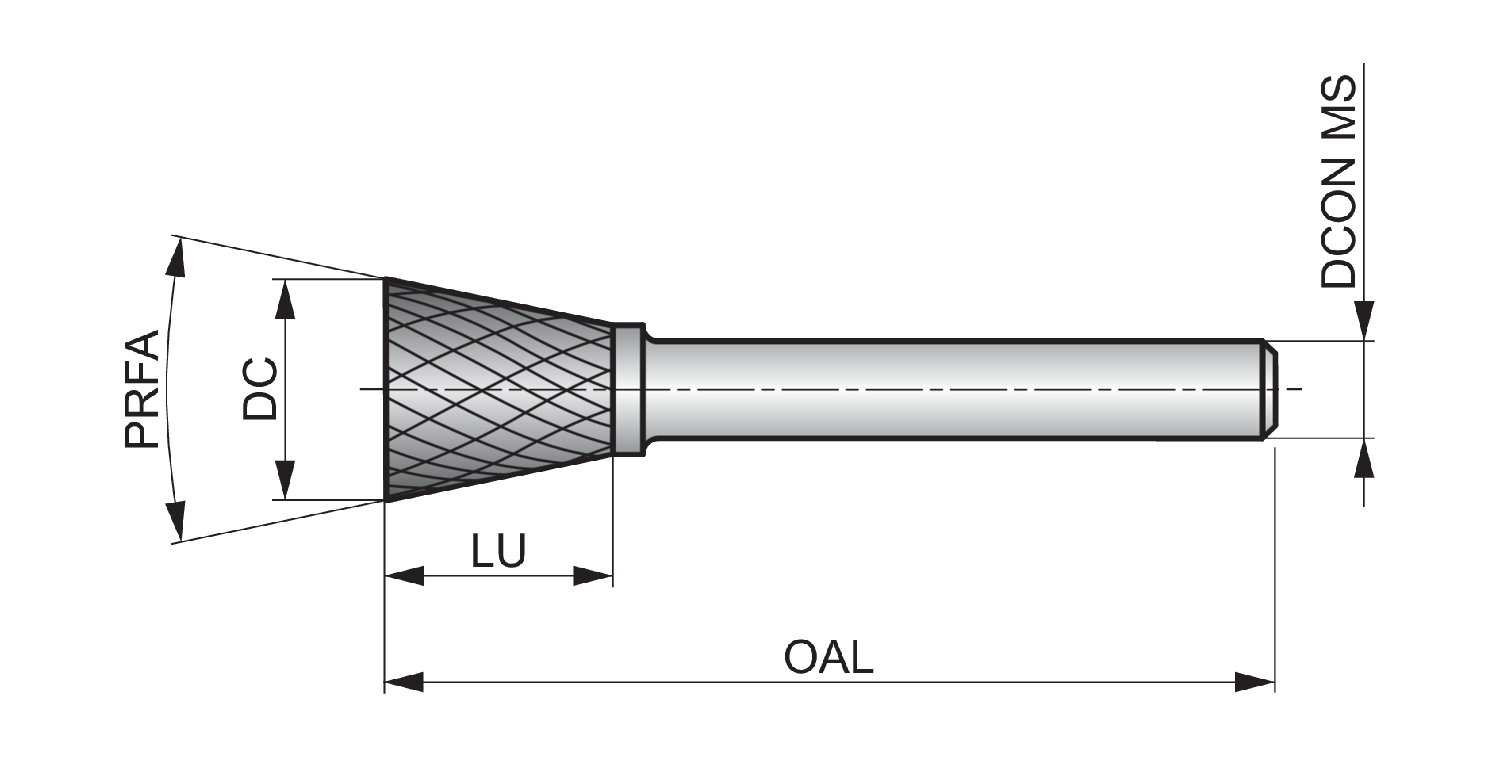

SN-02DC — Line Drawing PDF Download
