FGR-10LD-L

FGR-10LD-L

SKU PRE7466387
by Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.40 - $33.40
$33.40
$33.40 - $33.40
$33.40

Sold in packs of: 1

Router with 135° drill point, diameter 1/4" with 1" length of cut, 3" overall length and 1/4" shank, solid carbide with bright finish, GRP diamond cut flute style with medium spaced edges for contouring, cutting out shapes and holes in glass fibre reinforced polymers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)FGR-10LD-L
GradeBright
Product Number7466387
Product FamilyFGR-D
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)135°
Tool Information
ShankCylindrical shank
Reference Numbers
EDP Number7466387
EAN7320760788578
File Type Download

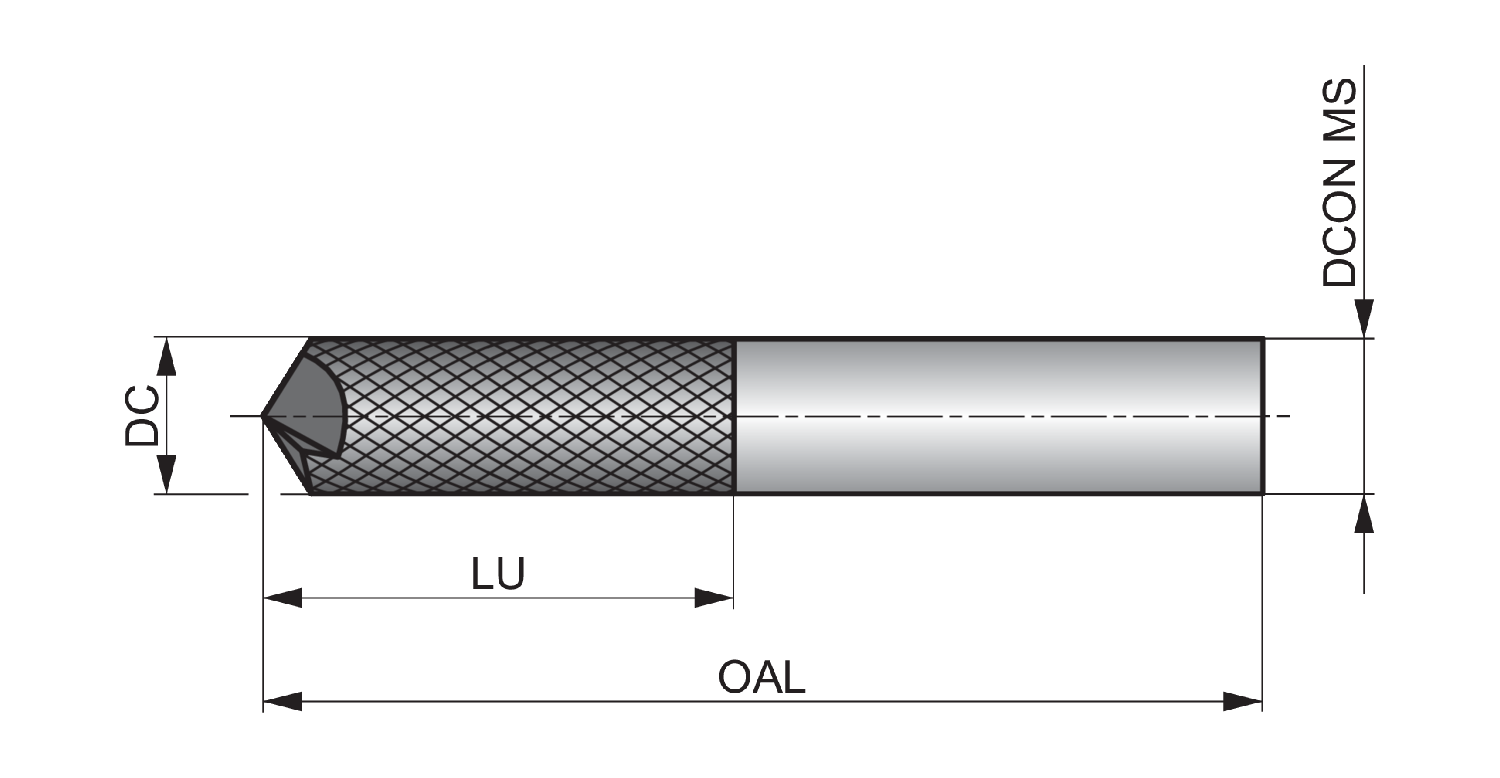

FGR-10LD-L — Line Drawing PDF Download
