RDGT 1003MOT:M6330

RDGT 1003MOT:M6330

SKU DOR7601340
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.14 - $17.14
$17.14
$17.14 - $17.14
$17.14

Sold in packs of: 10

Single-sided milling insert RDGT 1003 with chip-breakers, round for a maximum depth of cut of .0984", with " corner radius, an indexing accuracy according to ISO-tolerance class-G with cutting edges with facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with copy face mills SRD10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDGT 1003MOT:M6330
GradeM6330
Chipbreaker (CBMD)With chipbreaker -no designation
Product Number7601340
Product FamilyRDGT 10

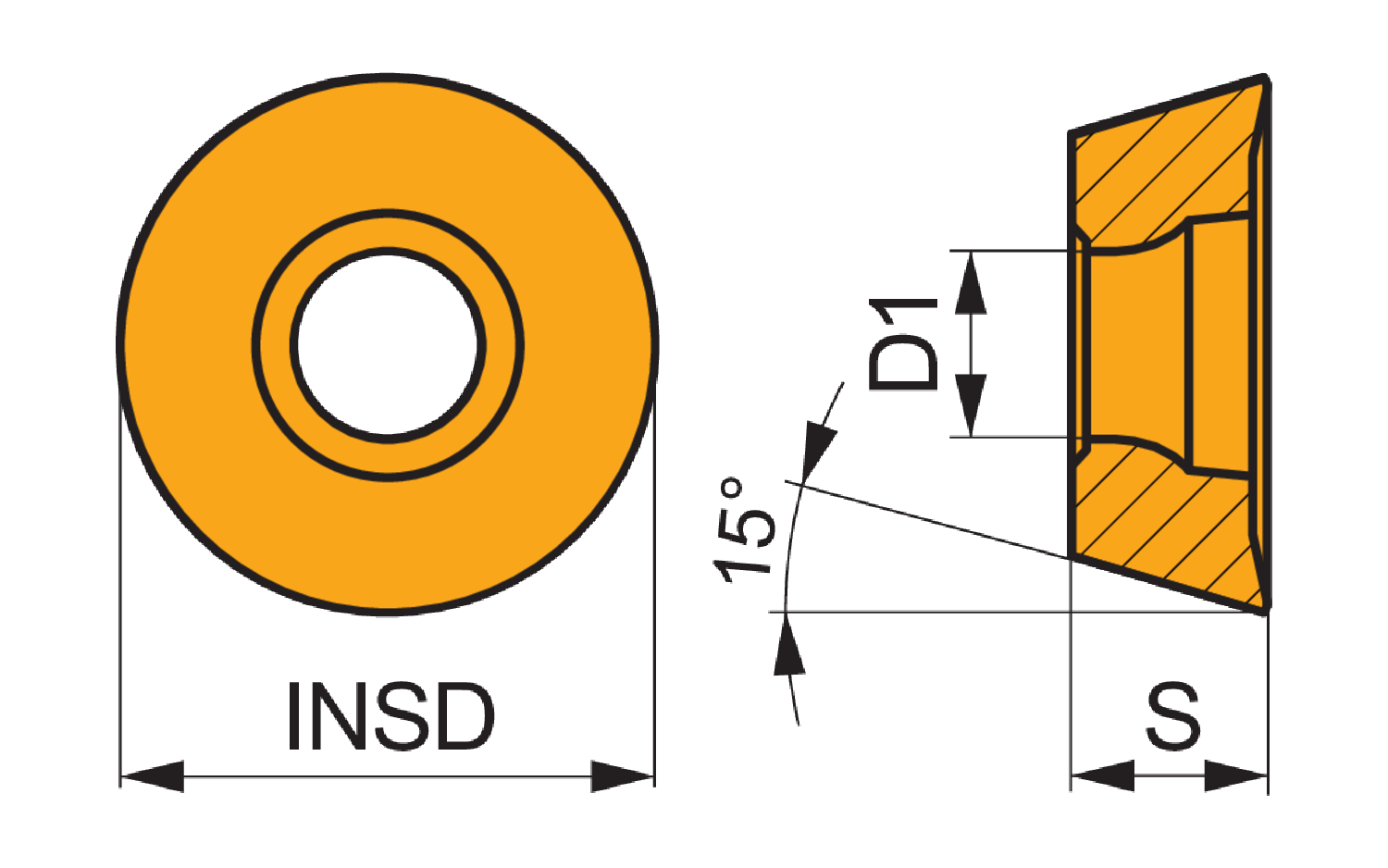

Insert Geometry
Insert DesignRDGT
Insert Shape Code (SC)R - round
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7601340
EAN3603603520196
File Type Download
RDGT 1003MOT:M6330 — Line Drawing PDF Download
