XNGX 1308DNSN:M8330

XNGX 1308DNSN:M8330

SKU DOR7606905
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.49 - $62.49
$62.49
$62.49 - $62.49
$62.49

Sold in packs of: 5

Double-sided milling insert XNGX 1308, special shape and wiper design for a maximum depth of cut of .1378", with " corner radius, an indexing accuracy according to ISO-tolerance class-G with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XNGX 1308DNSN:M8330
GradeM8330
Chipbreaker (CBMD)Wiper insert with chipbreaker - no designation
Product Number7606905
Product FamilyXNGX 13

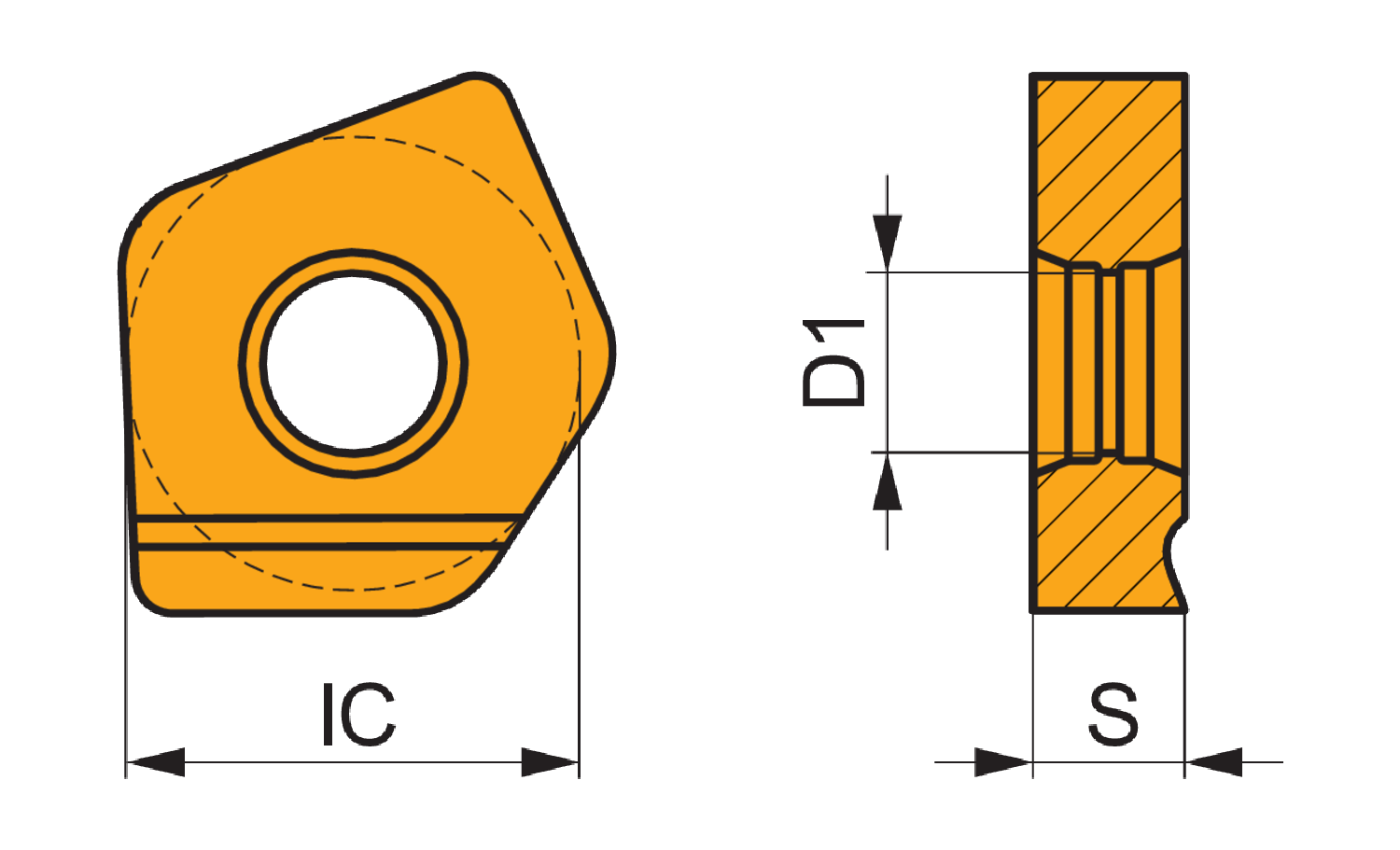

Insert Geometry
Insert DesignXNGX
Insert Shape Code (SC)X - Special design
Inscribed Circle Dia. — in (IC)0.952"
Inscribed Circle Dia. — mm (IC)24.18 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number7606905
EAN3603603517202
File Type Download
XNGX 1308DNSN:M8330 — Line Drawing PDF Download
