S1087/32

S1087/32

SKU DOR7648534
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.06 - $27.06
$27.06
$27.06 - $27.06
$27.06

Sold in packs of: 1

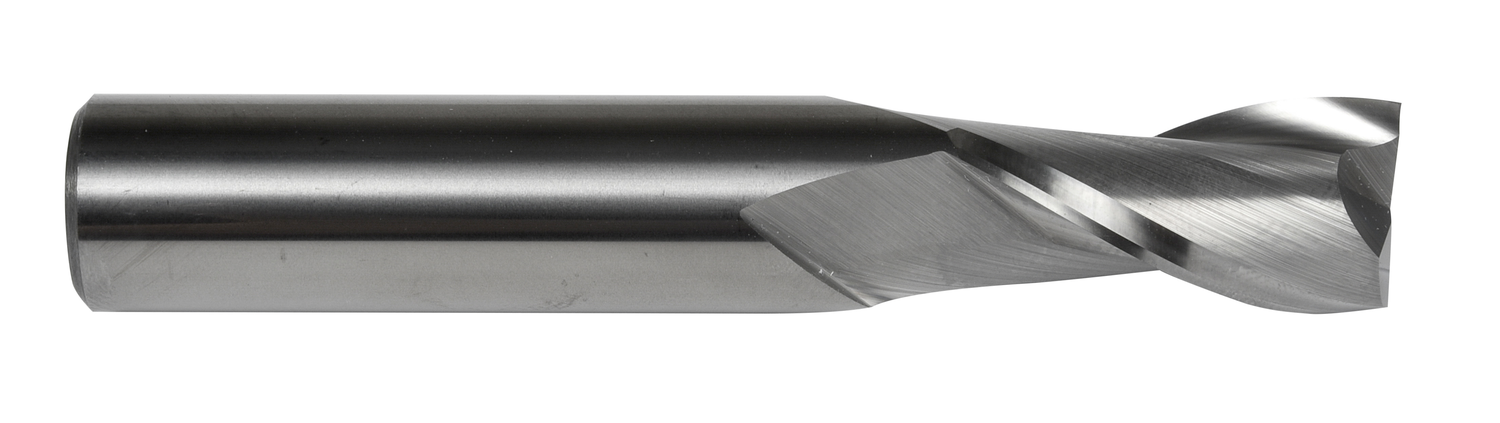

Regular length end mill with 2 flutes, diameter 7/32" with 5/8" length of cut and 2.1/2" overall length, according to DORMER standard with a 1/4" plain shank, solid carbide with bright finish, 30° helix for slot milling in steel and cast steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1087/32
GradeBright
Product Number7648534
Product FamilyS108
Insert Geometry
Depth of Cut Max — mm (APMX)15.88 mm
Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648534
EAN7320760845813
File Type Download

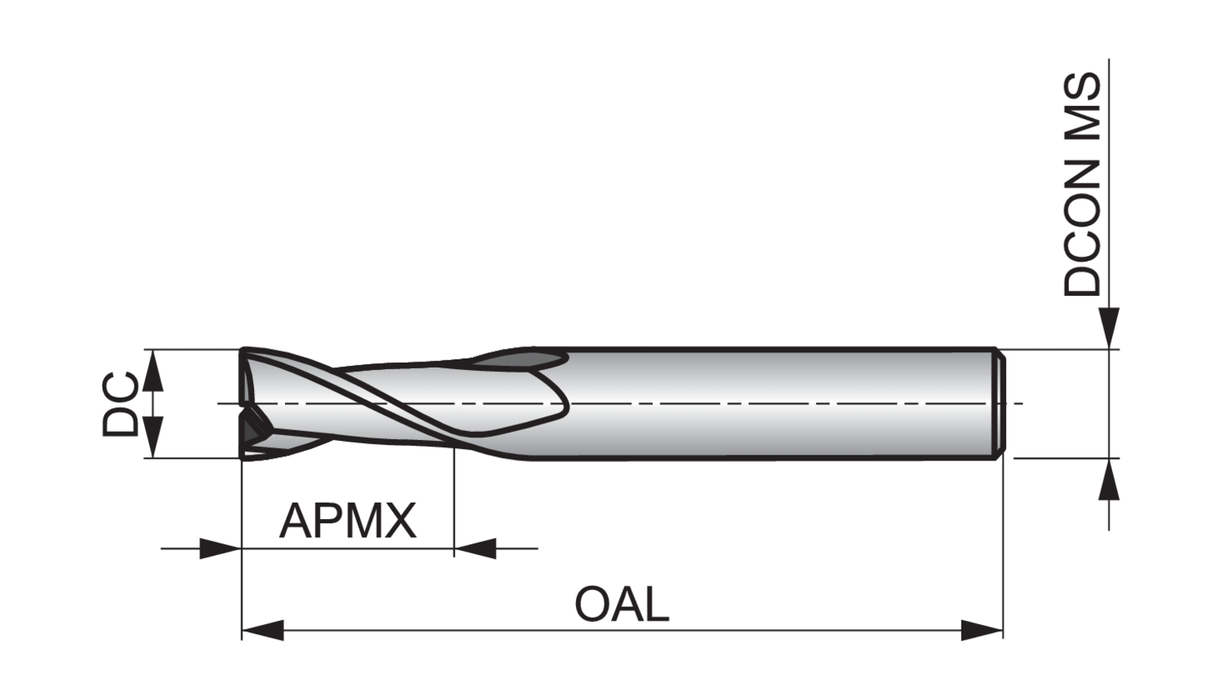

S1087/32 — Line Drawing PDF Download
