HX18N22

HX18N22

SKU PRE5995791
by Precision Twist Drill
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron Possible Use: S - High Temperature Alloys

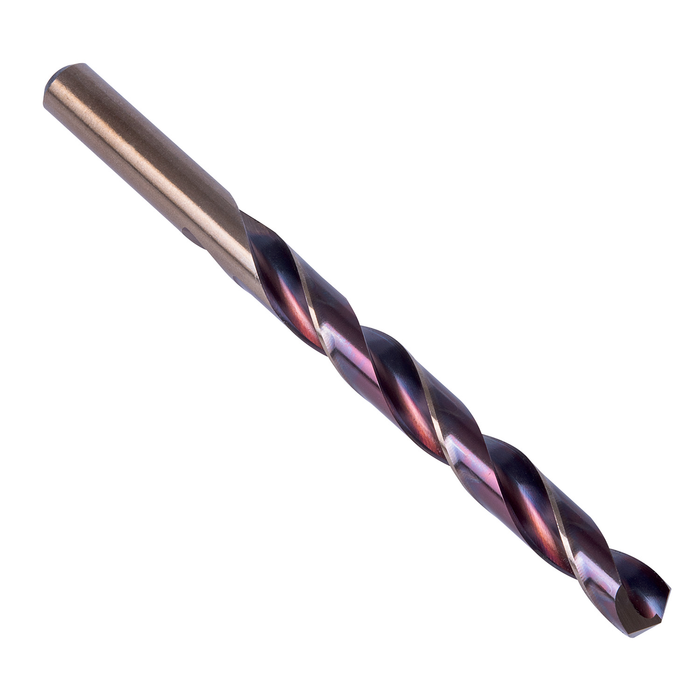

Jobber length drill with straight shank, diameter 0.1570" (N22) with an overall length of 3.1/8" and flute length of 2" according to ANSI standard with 135° split point, HSS with purple-bronze finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$0
$2.14 - $2.14
$2.14
$2.14 - $2.14
$2.14
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.157

Cutting Diameter - mm (DC): 3.99

Drill Point Angle - deg: 135

Flute Length: 2.0

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.125

Connetion Diameter: 0.157

Tool Direction: Right

Shank: Cylindrical shank

Grade: Purple/Bronze

EDP: 22122

MFG Part Number: 5995791
