CO500-61/16

CO500-61/16

SKU PRE5995809
by Precision Twist Drill
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron S - High Temperature Alloys Possible Use: N - Non-Ferrous Metals

Aircraft extension-length drill with straight shank, diameter 0.0625" (1/16) with an overall length of 6" and flute length of 7/8" according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$0
$7.31 - $7.31
$7.31
$7.31 - $7.31
$7.31
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

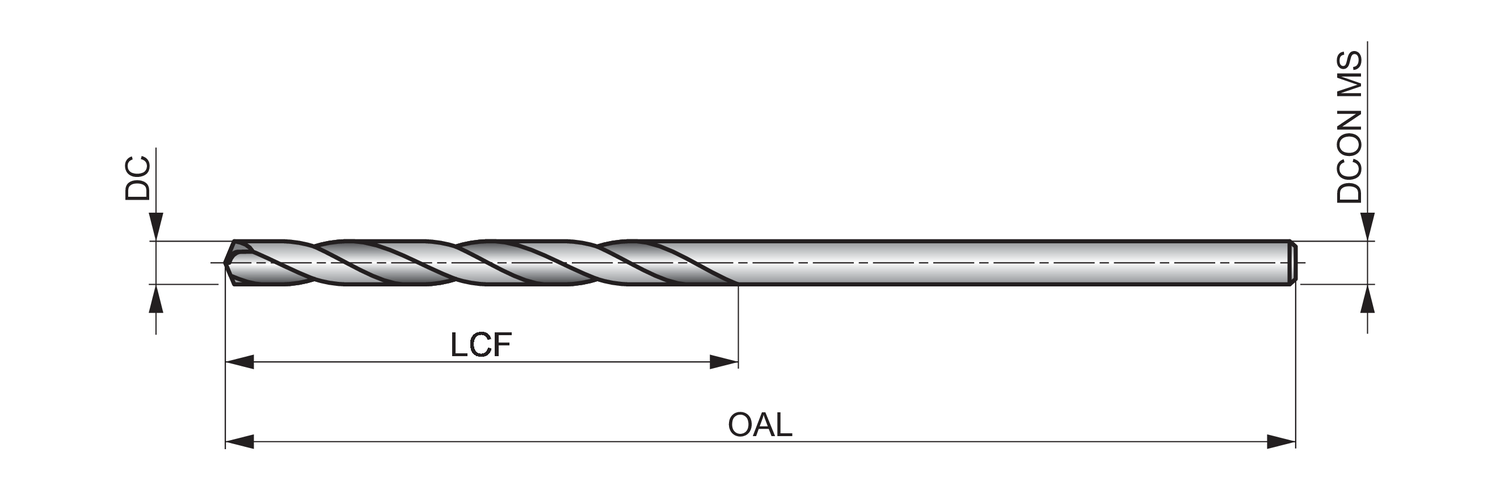

Material: HSS-E

Cutting Diameter - in (DC): 0.0625

Cutting Diameter - mm (DC): 1.59

Drill Point Angle - deg: 135

Flute Length: 0.875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 6.0

Connetion Diameter: 0.0625

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 1/16

Grade: Bronze

EDP: 53604

MFG Part Number: 5995809
