HX18N29

HX18N29

SKU PRE5995823
by Precision Twist Drill
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron Possible Use: S - High Temperature Alloys

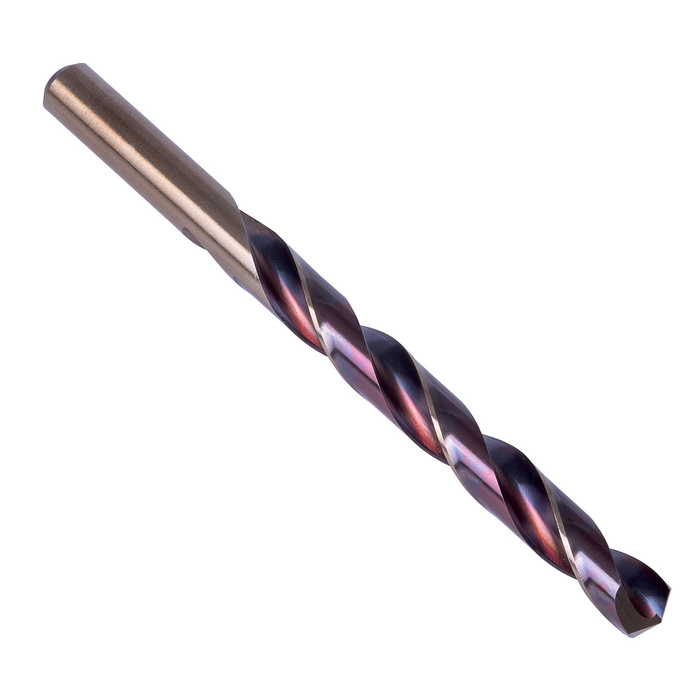

Jobber length drill with straight shank, diameter 0.1360" (N29) with an overall length of 2.7/8" and flute length of 1.3/4" according to ANSI standard with 135° split point, HSS with purple-bronze finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$0
$1.86 - $1.86
$1.86
$1.86 - $1.86
$1.86
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.136

Cutting Diameter - mm (DC): 3.45

Drill Point Angle - deg: 135

Flute Length: 1.75

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 2.875

Connetion Diameter: 0.136

Tool Direction: Right

Shank: Cylindrical shank

Grade: Purple/Bronze

EDP: 22129

MFG Part Number: 5995823
