ATR41N4
ATR41N4

ATR41N4

SKU PRE5995826
by Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.13 CAD - $18.13 CAD
$18.13 CAD
$18.13 CAD - $18.13 CAD
$18.13 CAD

Sold in packs of: 12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ATR41N4
GradeBright
Product Number5995826
Product FamilyATR41

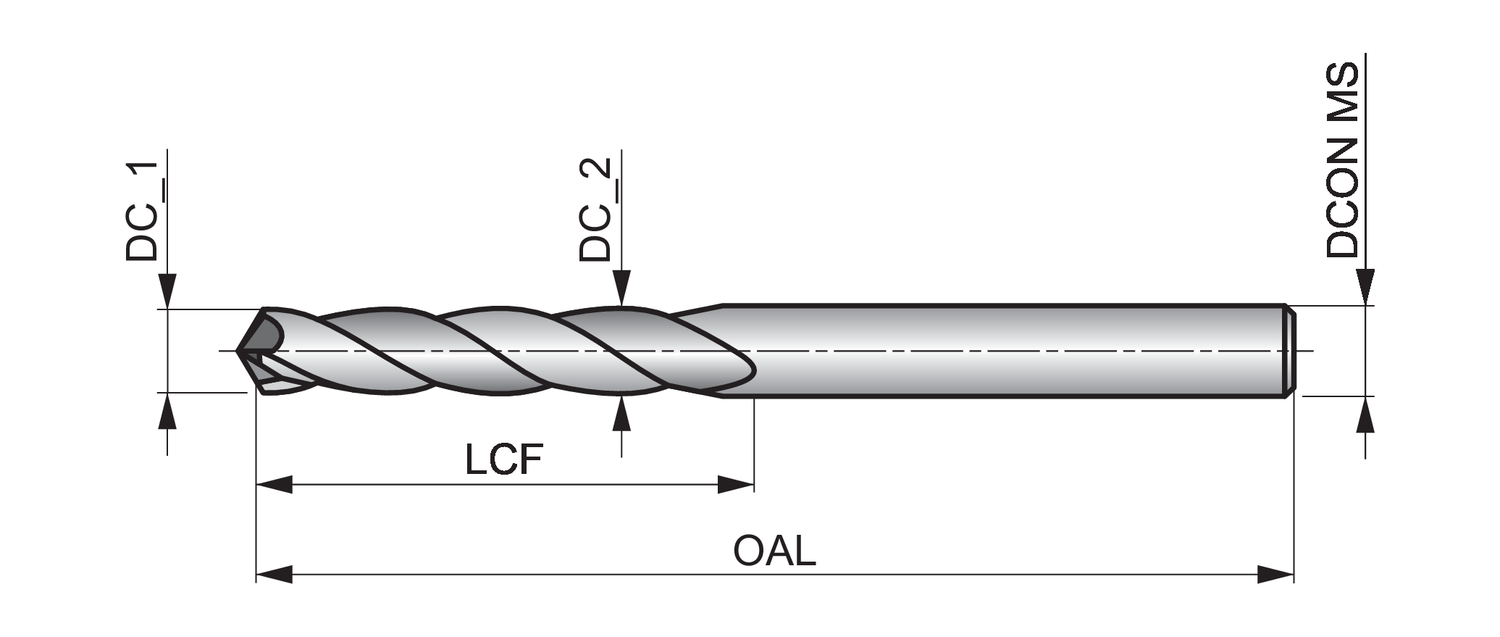

Dimensions
Overall Length — in (OAL)2.75"
Overall Length — mm (OAL)69.85 mm
Flute Length — in (LCF)1.25"
Flute Length — mm (LCF)31.75 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)4
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number41704
File Type Download
ATR41N4 — 3D Model STP Download
ATR41N4 — Line Drawing PDF Download
