CO501-12N2

CO501-12N2

SKU PRE5995880
by Precision Twist Drill
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron S - High Temperature Alloys Possible Use: N - Non-Ferrous Metals

Aircraft extension-length drill with straight shank, diameter 0.2210" (N2) with an overall length of 12" and flute length of 2.5/8" according to NAS907 Type J standard with 135° heavy duty split point, cobalt based HSS-E with bronze finish for 4xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$0
$26.07 - $26.07
$26.07
$26.07 - $26.07
$26.07
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

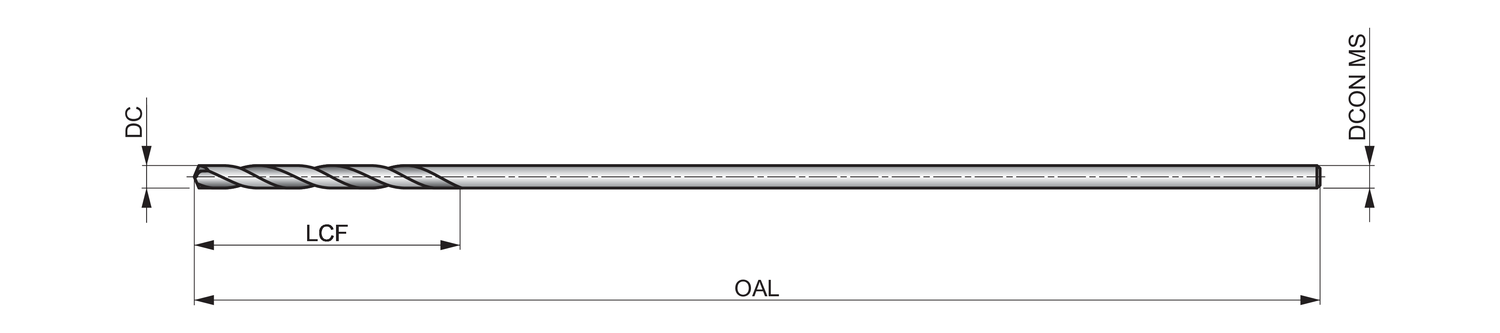

Material: HSS-E

Cutting Diameter - in (DC): 0.221

Cutting Diameter - mm (DC): 5.61

Drill Point Angle - deg: 135

Flute Length: 2.625

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 12.0

Connetion Diameter: 0.221

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bronze

EDP: 52802

MFG Part Number: 5995880
