HX18N12

HX18N12

SKU PRE5995930
by Precision Twist Drill
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron Possible Use: S - High Temperature Alloys

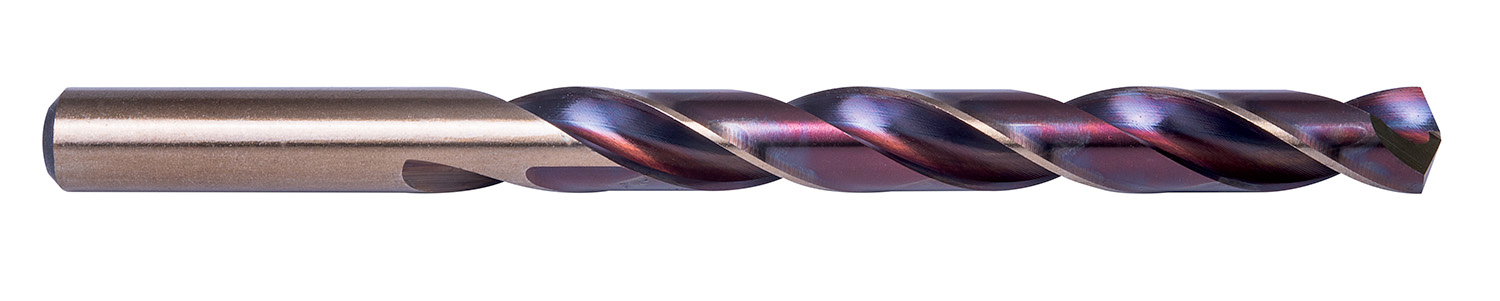

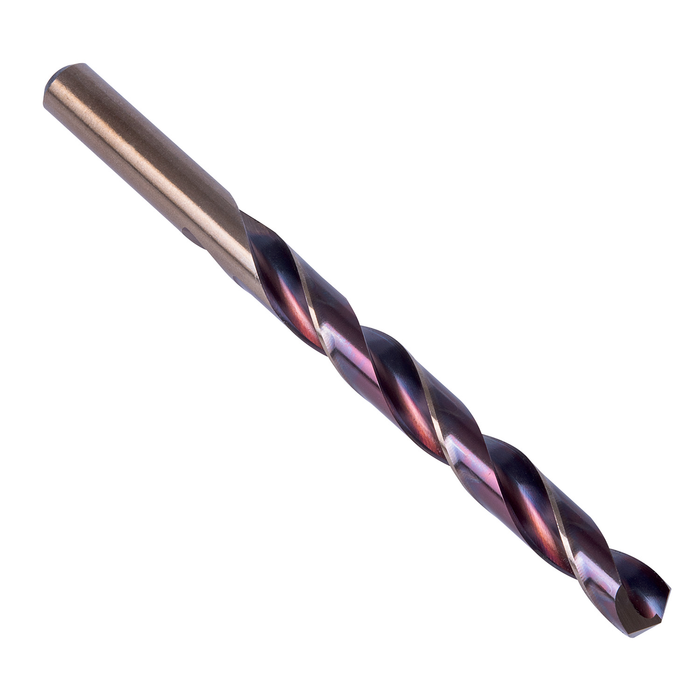

Jobber length drill with straight shank, diameter 0.1890" (N12) with an overall length of 3.1/2" and flute length of 2.5/16" according to ANSI standard with 135° split point, HSS with purple-bronze finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$0
$2.88 - $2.88
$2.88
$2.88 - $2.88
$2.88
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.189

Cutting Diameter - mm (DC): 4.8

Drill Point Angle - deg: 135

Flute Length: 2.3125

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.5

Connetion Diameter: 0.189

Tool Direction: Right

Shank: Cylindrical shank

Grade: Purple/Bronze

EDP: 22112

MFG Part Number: 5995930
