M40CO3/8

M40CO3/8

SKU PRE5995962
by Precision Twist Drill
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron S - High Temperature Alloys Possible Use: N - Non-Ferrous Metals

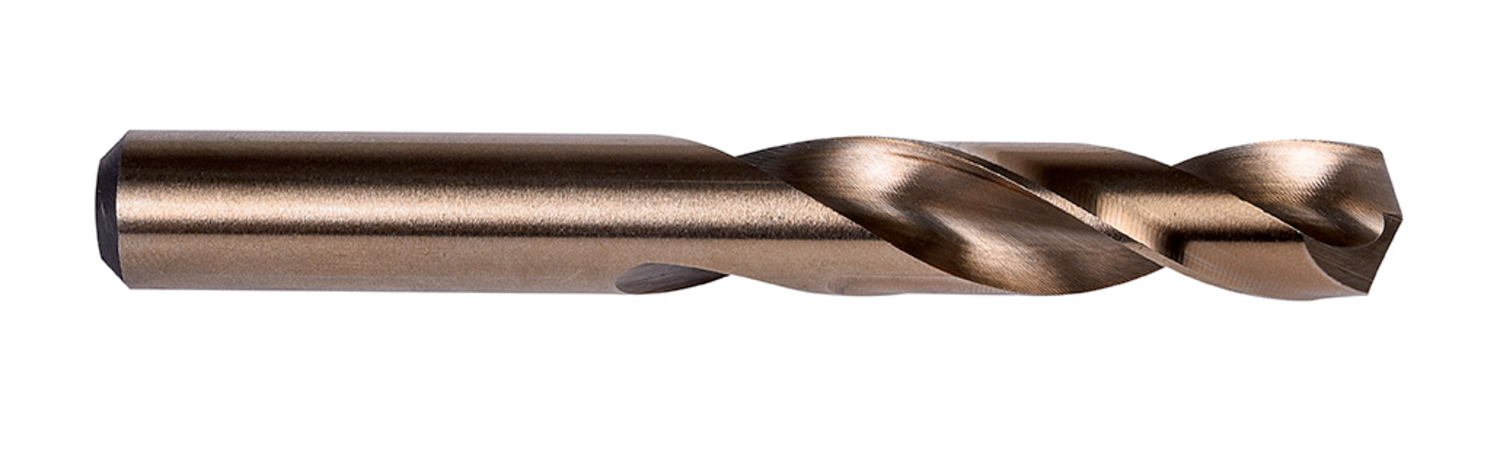

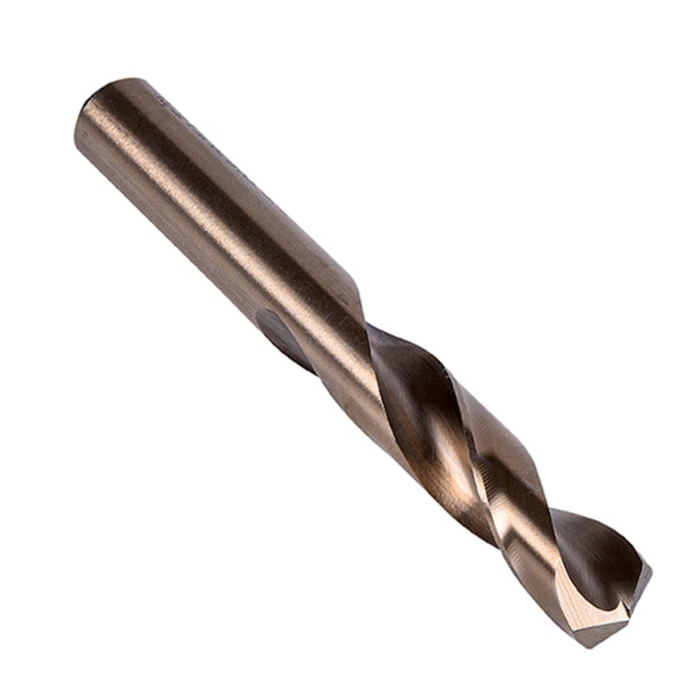

Stub length drill with straight shank, diameter 0.3750" (3/8) with an overall length of 3.1/8" and flute length of 1.13/16" according to ANSI standard with 135° split point, cobalt based HSS-E with bronze finish for 2.5xD drilling without pecking in steel, stainless steel, cast iron and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$0
$13.06 - $13.06
$13.06
$13.06 - $13.06
$13.06
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.375

Cutting Diameter - mm (DC): 9.53

Drill Point Angle - deg: 135

Flute Length: 1.8125

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.125

Connetion Diameter: 0.375

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 3/8

Grade: Bronze

EDP: 40324

MFG Part Number: 5995962
