SPL-903/8

Name: SPL-903/8
Brand: Precision Twist Drill
SKU: PRE6000031
Price: 79.2 CAD
Availability: InStock

SKU PRE6000031

by Precision Twist Drill

Primary Use: Possible Use:

Availability in Distribution Centers:

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

For more information about this product, click here

$79.20 - $79.20

$79.20

$79.20 - $79.20

$79.20

Sold in packs of: 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	SPL-903/8
Grade	Bright
Product Number	6000031
Product Family	SPL-90

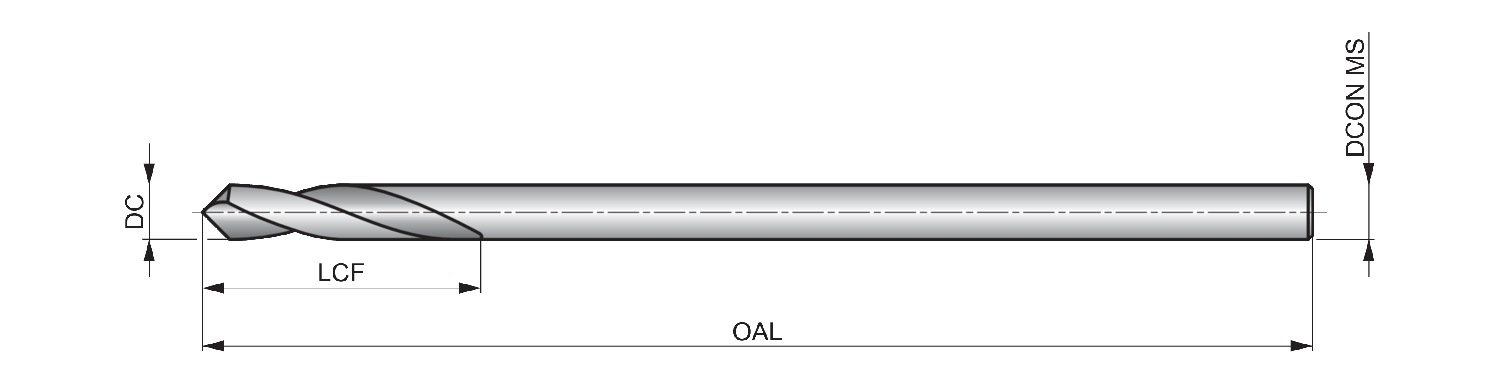

Dimensions
Cutting Diameter — in (DC)	0.375"
Cutting Diameter — mm (DC)	9.53 mm
Cutting Diameter — Fractional	3/8
Overall Length — in (OAL)	7.0"
Overall Length — mm (OAL)	177.8 mm
Flute Length — in (LCF)	1.125"
Flute Length — mm (LCF)	28.58 mm
Length × Diameter Ratio	1
Connection Dia. — in (DCON)	0.375"
Connection Dia. — mm (DCON)	9.53 mm
Drill Point Angle (SIG)	90°
Tool Information
Shank	Cylindrical shank
Direction of Tool	Right
Standard	Work Norm
Reference Numbers
EDP Number	87925

File	Type	Download
SPL-903/8 — 3D Model	STP	Download
SPL-903/8 — Line Drawing	PDF	Download
