301JDN7

301JDN7

SKU PRE6480802
by Precision Twist Drill
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.67 - $1.67
$1.67
$1.67 - $1.67
$1.67

Sold in packs of: 12

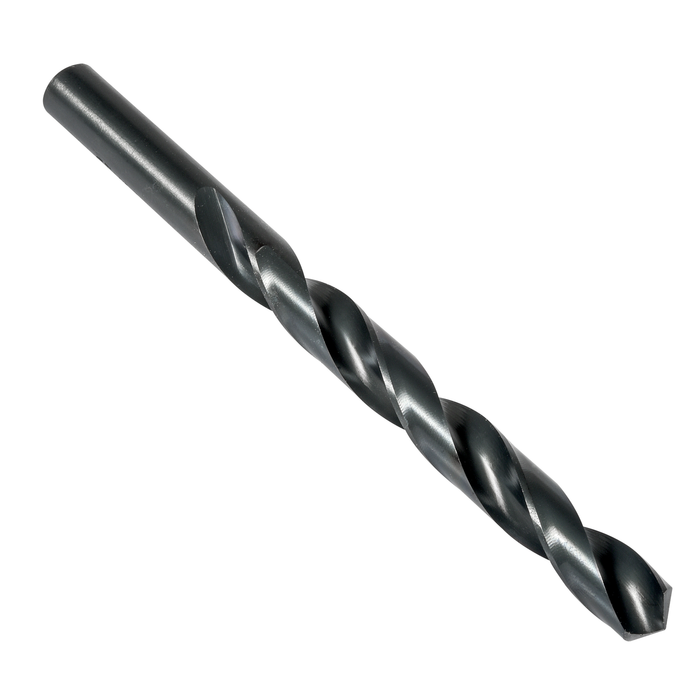

Jobber length drill with straight shank, diameter 0.2010" (N7) with an overall length of 3.5/8" and flute length of 2.7/16" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)301JDN7
GradeSteam Tempered
Product Number6480802
Product Family301JD
Dimensions
Cutting Diameter — in (DC)0.201"
Overall Length — in (OAL)3.625"
Flute Length — in (LCF)2.4375"
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.201"
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
Reference Numbers
EDP Number46480802
EAN8032744126854
