301JDG

301JDG

SKU PRE6480819
by Precision Twist Drill
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.86 - $2.86
$2.86
$2.86 - $2.86
$2.86

Sold in packs of: 12

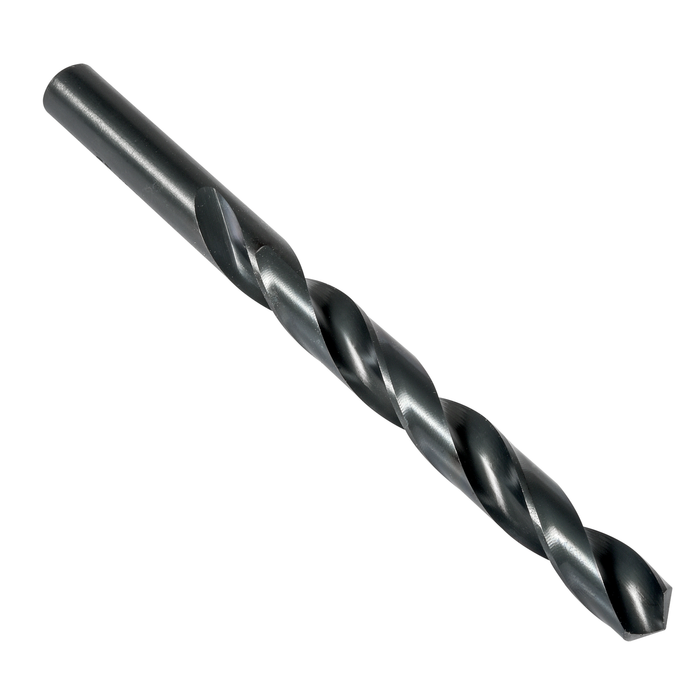

Jobber length drill with straight shank, diameter 0.2610" (G) with an overall length of 4.1/8" and flute length of 2.7/8" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)301JDG
GradeSteam Tempered
Product Number6480819
Product Family301JD
Dimensions
Cutting Diameter — in (DC)0.261"
Overall Length — in (OAL)4.125"
Flute Length — in (LCF)2.875"
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.261"
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
Reference Numbers
EDP Number46480819
EAN8032744127028
