301JDH

301JDH

SKU PRE6480821
by Precision Twist Drill
Primary Use: P - Steel and Cast Steel K - Cast Iron Possible Use: M - Stainless Steel N - Non-Ferrous Metals

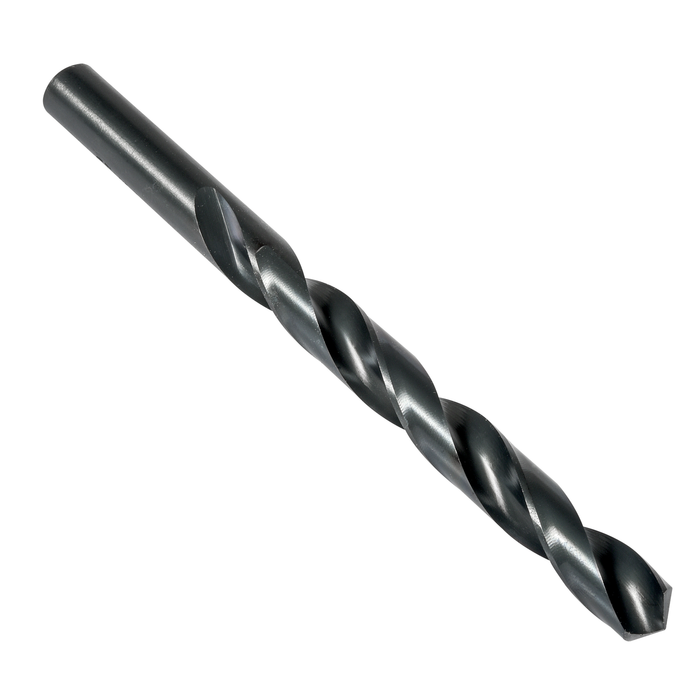

Jobber length drill with straight shank, diameter 0.2660" (H) with an overall length of 4.1/8" and flute length of 2.7/8" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$0
$2.62 - $2.62
$2.62
$2.62 - $2.62
$2.62
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.266

Cutting Diameter - mm (DC): 6.76

Drill Point Angle - deg: 118

Flute Length: 2.875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.125

Connetion Diameter: 0.266

Tool Direction: Right

Shank: Cylindrical shank

Letter: H

Grade: Steam Tempered

EDP: 46480821

EAN: 8032744127042

MFG Part Number: 6480821
