301JD5/16

301JD5/16

SKU PRE6480830
by Precision Twist Drill
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.17 - $3.17
$3.17
$3.17 - $3.17
$3.17

Sold in packs of: 6

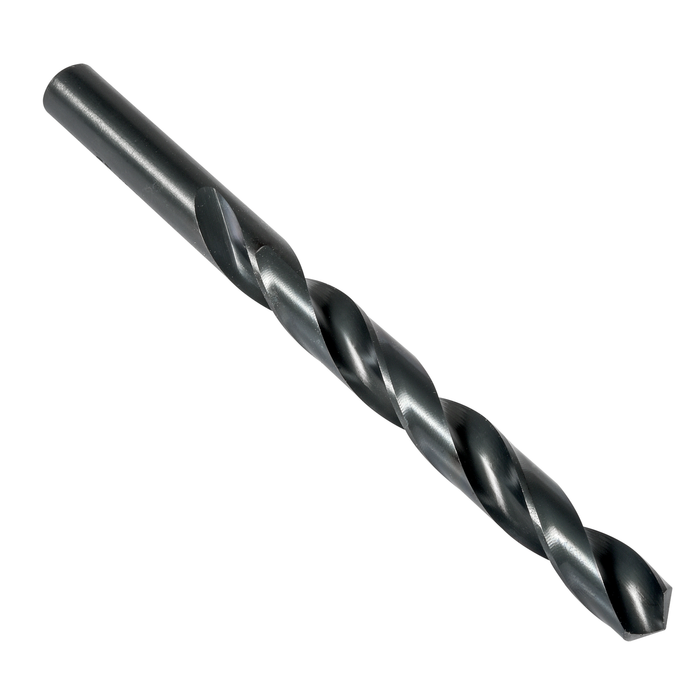

Jobber length drill with straight shank, diameter 0.3125" (5/16) with an overall length of 4.1/2" and flute length of 3.3/16" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)301JD5/16
GradeSteam Tempered
Product Number6480830
Product Family301JD
Dimensions
Cutting Diameter — in (DC)0.3125"
Overall Length — in (OAL)4.5"
Flute Length — in (LCF)3.1875"
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.3125"
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
Reference Numbers
EDP Number46480830
EAN8032744127134
