301JDQ

301JDQ

SKU PRE6480834
by Precision Twist Drill
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.06 - $4.06
$4.06
$4.06 - $4.06
$4.06

Sold in packs of: 6

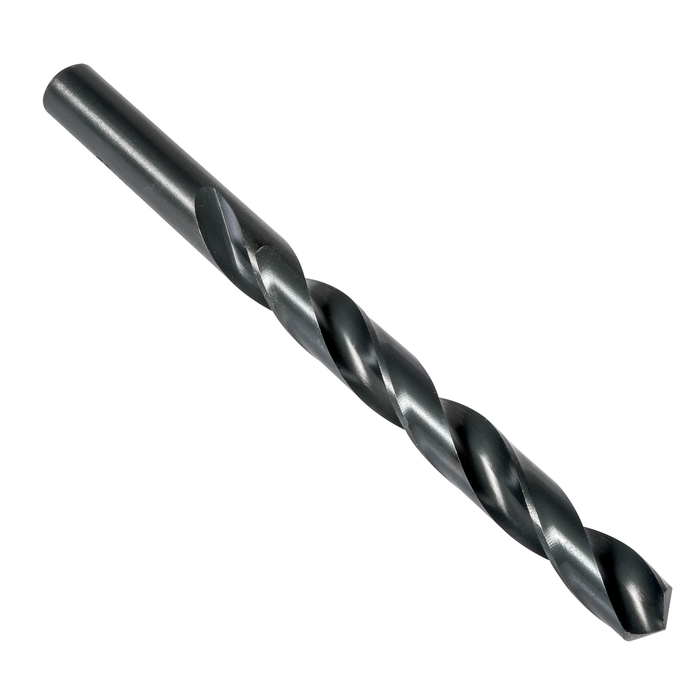

Jobber length drill with straight shank, diameter 0.3320" (Q) with an overall length of 4.3/4" and flute length of 3.7/16" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)301JDQ
GradeSteam Tempered
Product Number6480834
Product Family301JD
Dimensions
Cutting Diameter — in (DC)0.332"
Overall Length — in (OAL)4.75"
Flute Length — in (LCF)3.4375"
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.332"
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
Reference Numbers
EDP Number46480834
EAN8032744127172
