301JDR

301JDR

by Precision Twist Drill
Primary Use: P - Steel and Cast Steel K - Cast Iron Possible Use: M - Stainless Steel N - Non-Ferrous Metals

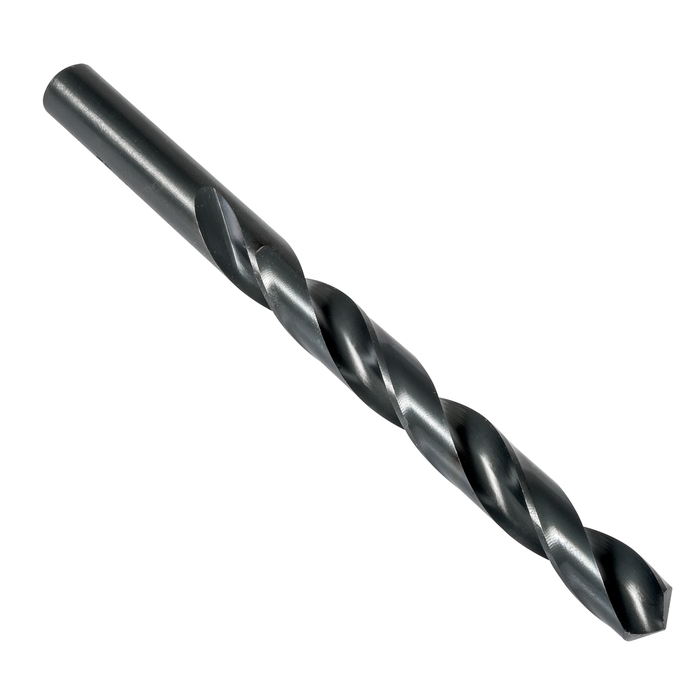

Jobber length drill with straight shank, diameter 0.3390" (R) with an overall length of 4.3/4" and flute length of 3.7/16" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 6

For more information about this product, click here
$4.02 - $4.02
$4.02 - $4.02
$4.02
$4.02 - $4.02
$4.02
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.339

Cutting Diameter - mm (DC): 8.61

Drill Point Angle - deg: 118

Flute Length: 3.4375

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.75

Connetion Diameter: 0.339

Tool Direction: Right

Shank: Cylindrical shank

Letter: R

Grade: Steam Tempered

EDP: 46480835

EAN: 8032744127189

MFG Part Number: 6480835
