301JD7/16

301JD7/16

SKU PRE6480850
by Precision Twist Drill
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.13 - $6.13
$6.13
$6.13 - $6.13
$6.13

Sold in packs of: 6

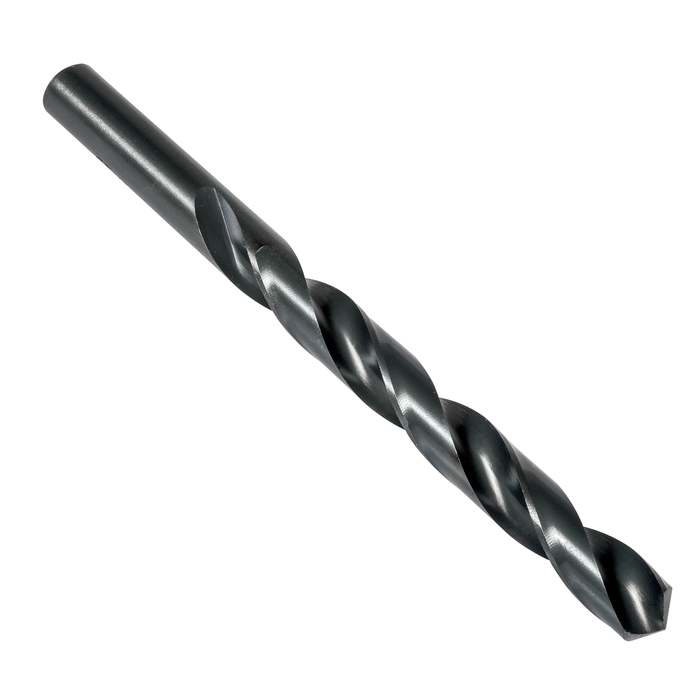

Jobber length drill with straight shank, diameter 0.4375" (7/16) with an overall length of 5.1/2" and flute length of 4.1/16" according to ANSI standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)301JD7/16
GradeSteam Tempered
Product Number6480850
Product Family301JD
Dimensions
Cutting Diameter — in (DC)0.4375"
Overall Length — in (OAL)5.5"
Flute Length — in (LCF)4.0625"
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4375"
Drill Point Angle (SIG)118°
Tool Information
ShankCylindrical shank
Direction of ToolRight
Reference Numbers
EDP Number46480850
EAN8032744127332
