311SMN43

311SMN43

by Precision Twist Drill
Primary Use: P - Steel and Cast Steel M - Stainless Steel K - Cast Iron Possible Use: N - Non-Ferrous Metals

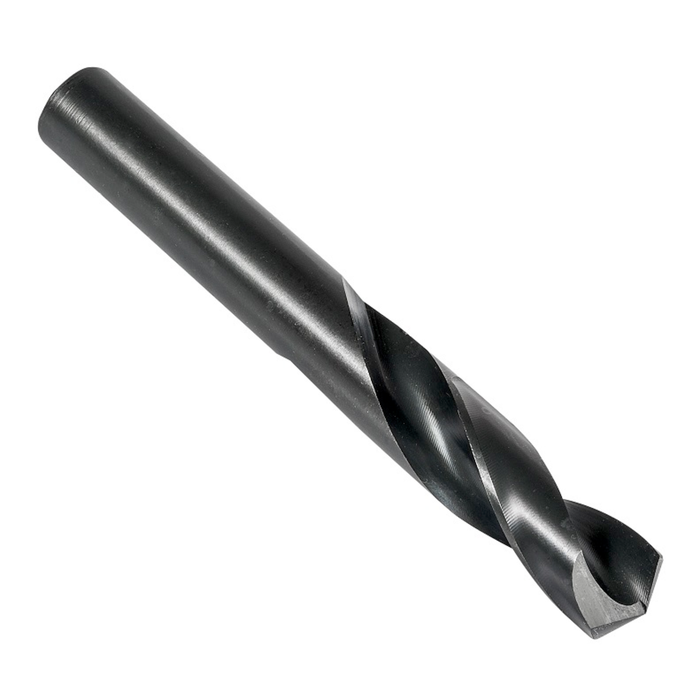

Stub length drill with straight shank, diameter 0.0890" (N43) with an overall length of 1.3/4" and flute length of 3/4" according to ANSI standard with 135° split point, HSS with steam tempered finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$1.04 - $1.04
$1.04 - $1.04
$1.04
$1.04 - $1.04
$1.04
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.089

Cutting Diameter - mm (DC): 2.26

Drill Point Angle - deg: 135

Flute Length: 0.75

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.75

Connetion Diameter: 0.089

Tool Direction: Right

Shank: Cylindrical shank

Grade: Steam Tempered

EDP: 46480874

EAN: 8032744127578

MFG Part Number: 6480874
