321MD3/16

321MD3/16

SKU PRE6480978
by Precision Twist Drill
Primary Use: P - Steel and Cast Steel K - Cast Iron Possible Use: M - Stainless Steel N - Non-Ferrous Metals

Mechanic's length drill with tri-flat shank, diameter 0.1875" (3/16) with an overall length of 3" and flute length of 1.7/8" according to ANSI standard with 135° split point, HSS with steam tempered + bronze finish for 4xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 12

For more information about this product, click here
$0
$2.14 - $2.14
$2.14
$2.14 - $2.14
$2.14
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

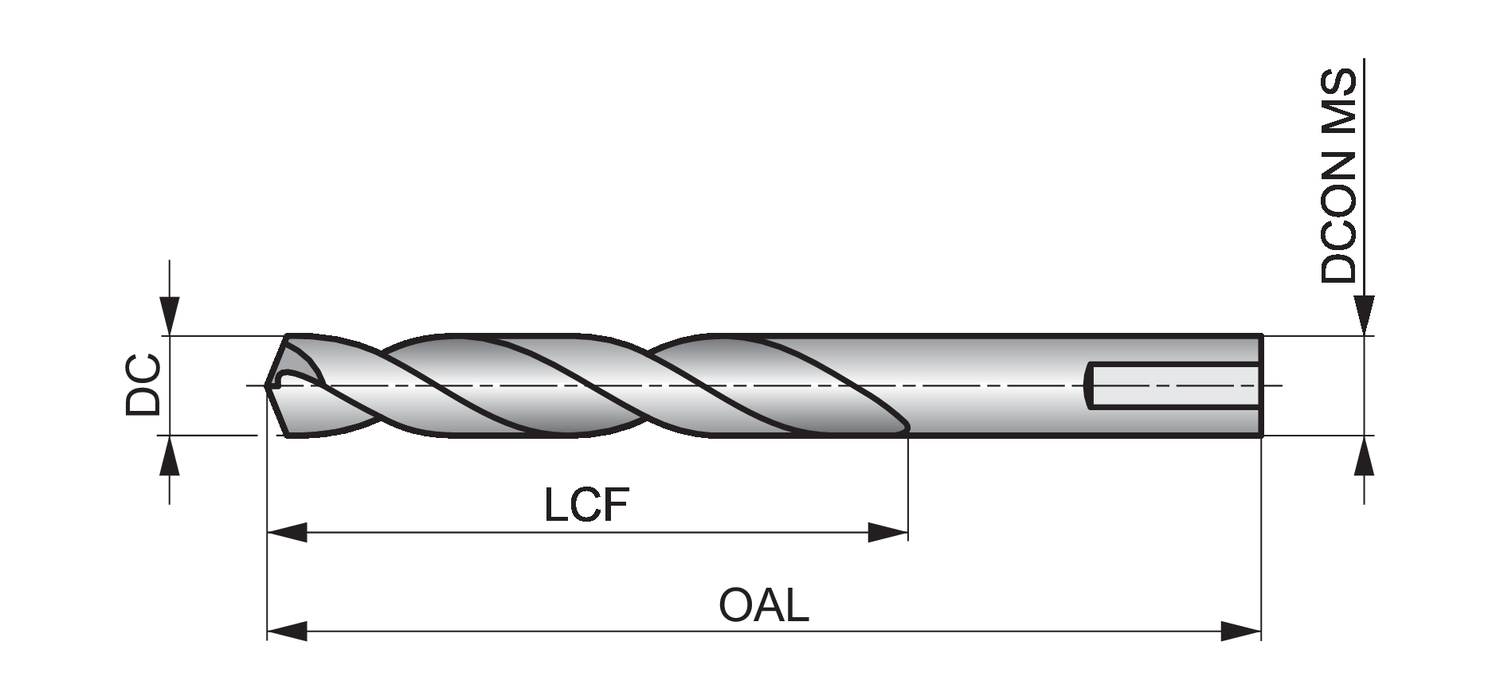

Material: HSS

Cutting Diameter - in (DC): 0.1875

Cutting Diameter - mm (DC): 4.76

Drill Point Angle - deg: 135

Flute Length: 1.875

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.0

Connetion Diameter: 0.1875

Tool Direction: Right

Shank: Cylindrical shank with 3-Flats

Fractional: 3/16

Grade: ST/Bronze

EDP: 46480978

EAN: 8032744128612

MFG Part Number: 6480978
