B9536.5

B9536.5

SKU DOR5986853
by Dormer Pramet
Primary Use: P - Steel and Cast Steel K - Cast Iron N - Non-Ferrous Metals Possible Use: M - Stainless Steel

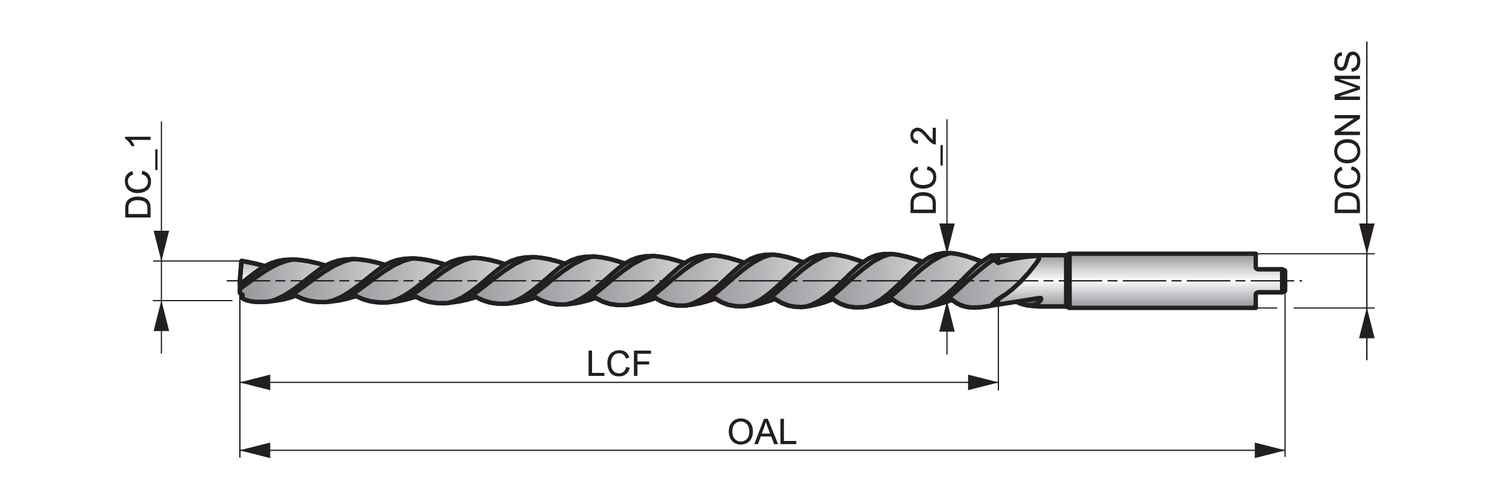

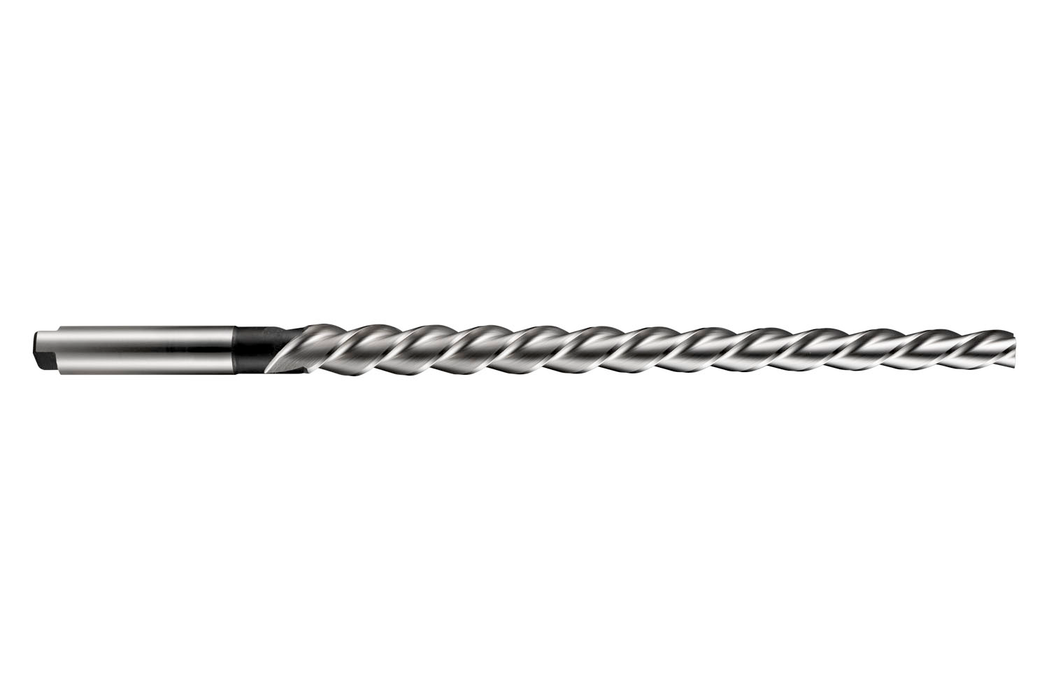

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank with tang, small end diameter 6.40mm with an overall length of 188mm, a flute length of 119mm and 8.78mm large end diameter, according to DIN 2179 standard for reaming pin holes with a 1:50 taper into which 6.50mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$94.90 - $94.90
$94.90
$94.90 - $94.90
$94.90
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Overall Length (OAL): 7.4016

Connetion Diameter: 0.3346

Tool Direction: Right

Shank: Cylindrical shank with Tang

Grade: Bright

EDP: 141076

EAN: 7320760141076

MFG Part Number: 5986853
