B1705.0

B1705.0

SKU DOR5986909
by Dormer Pramet
Primary Use: P - Steel and Cast Steel K - Cast Iron N - Non-Ferrous Metals Possible Use: M - Stainless Steel

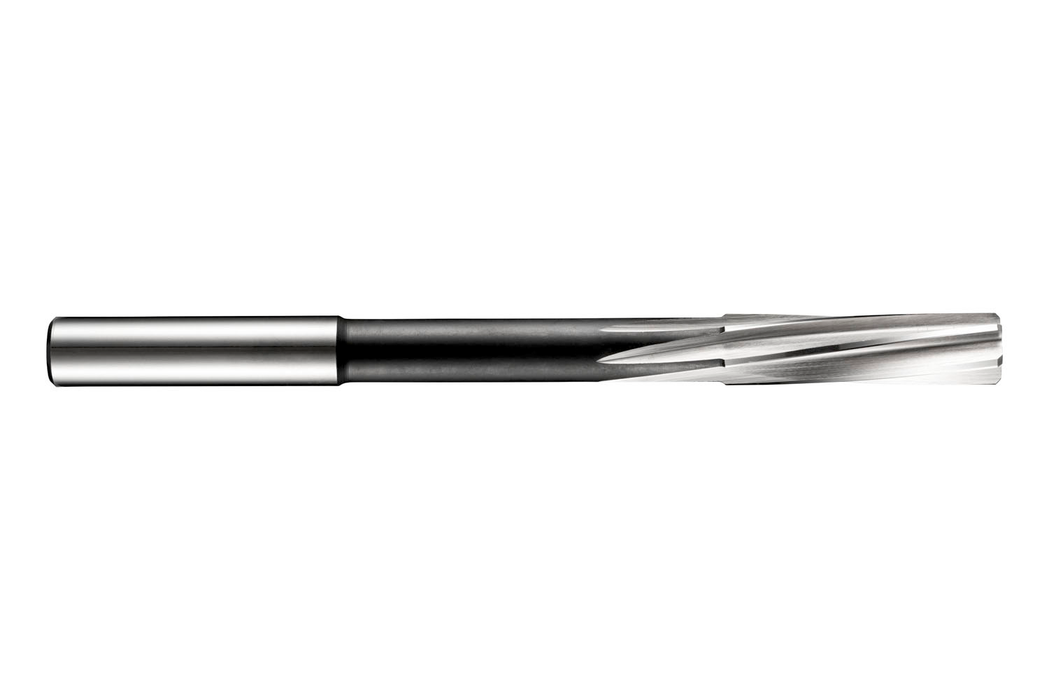

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 5.00mm with an overall length of 86mm, a flute length of 23mm and 52mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 5J7, 5J8, 5JS7, 5JS8 or 5JS9, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$46.96 - $46.96
$46.96
$46.96 - $46.96
$46.96
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

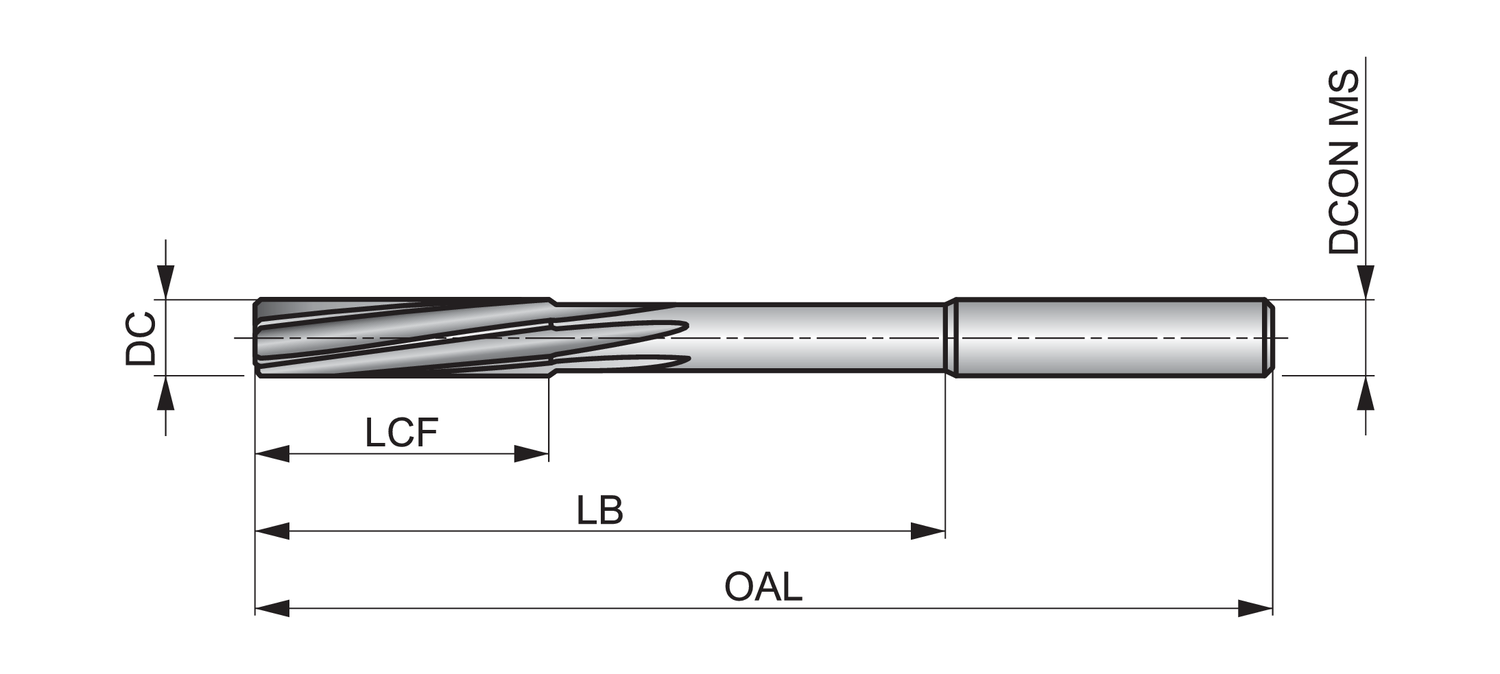

Cutting Diameter - in (DC): 0.1969

Cutting Diameter - mm (DC): 5.0

Overall Length (OAL): 3.3858

Connetion Diameter: 0.1969

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 133781

EAN: 7320760133781

MFG Part Number: 5986909
