B4009.0
B4009.0
B4009.0
B4009.0

B4009.0

SKU DOR5987155
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.53 CAD - $259.53 CAD
$259.53 CAD
$259.53 CAD - $259.53 CAD
$259.53 CAD

Sold in packs of: 1

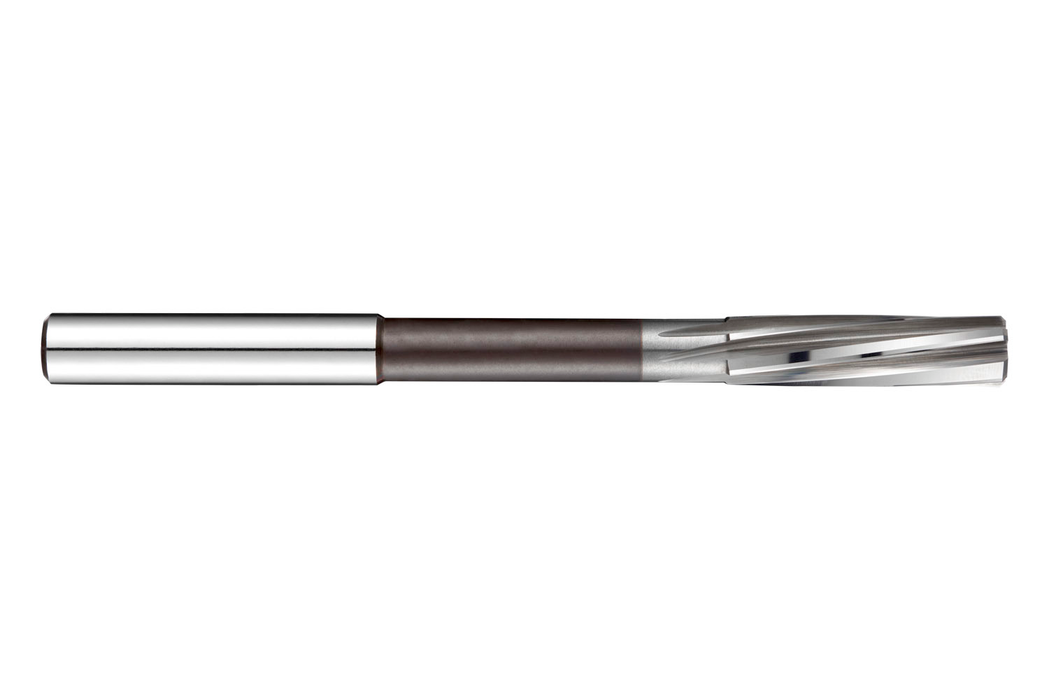

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 9.00mm with an overall length of 125mm, a flute length of 36mm and 85mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B4009.0
GradeBright
Product Number5987155
Product FamilyB400
Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — mm (LCF)36.0 mm
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)6
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 8093
Reference Numbers
EDP Number144268
EAN7320760144268
File Type Download

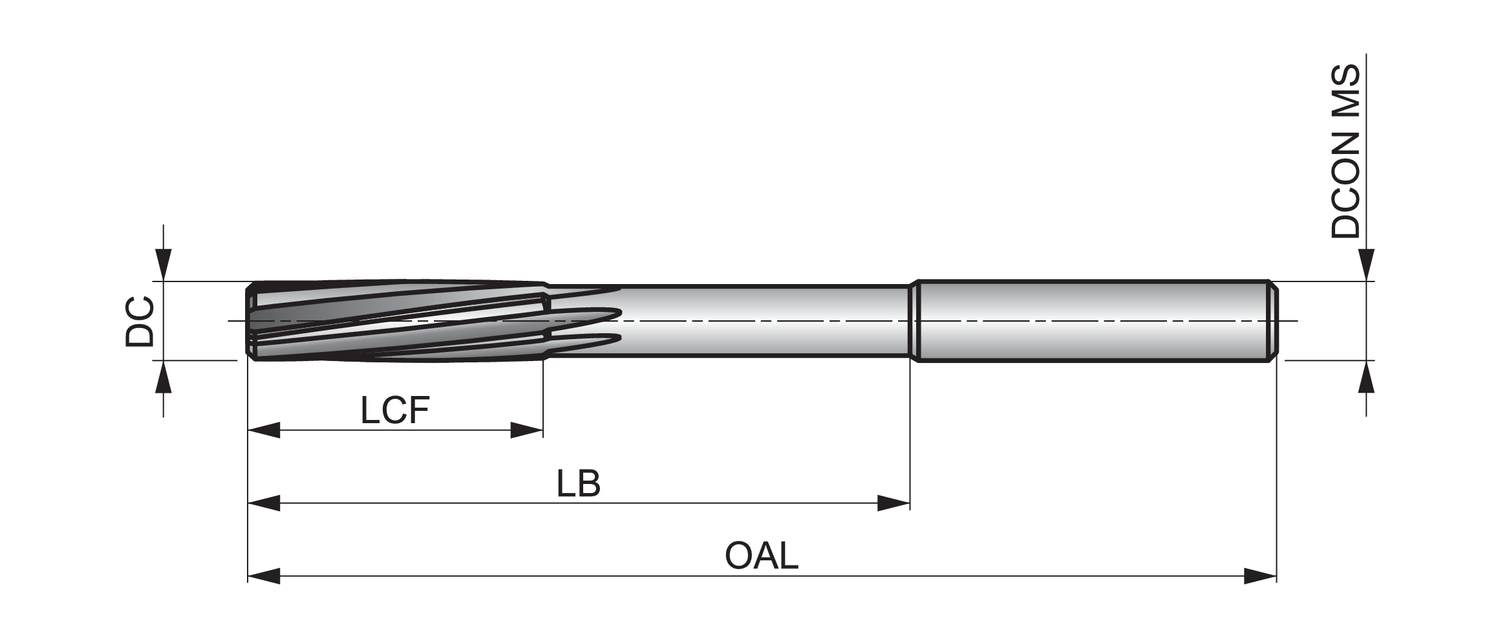

B4009.0 — Line Drawing PDF Download
