B44110.0
B44110.0
B44110.0

B44110.0

SKU DOR5987160
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.59 CAD - $186.59 CAD
$186.59 CAD
$186.59 CAD - $186.59 CAD
$186.59 CAD

Sold in packs of: 1

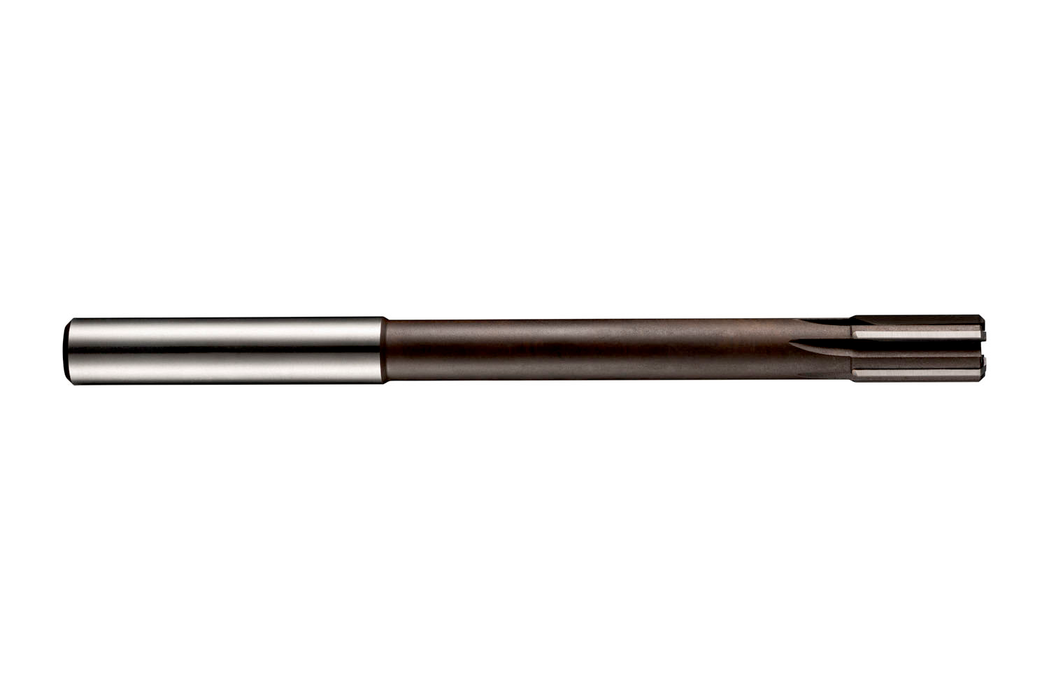

Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 10.00mm with an overall length of 133mm, a flute length of 19mm and 87mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B44110.0
GradeBright
Product Number5987160
Product FamilyB441
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — mm (LCF)19.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 8050
Reference Numbers
EDP Number421086
EAN7320760421086
File Type Download

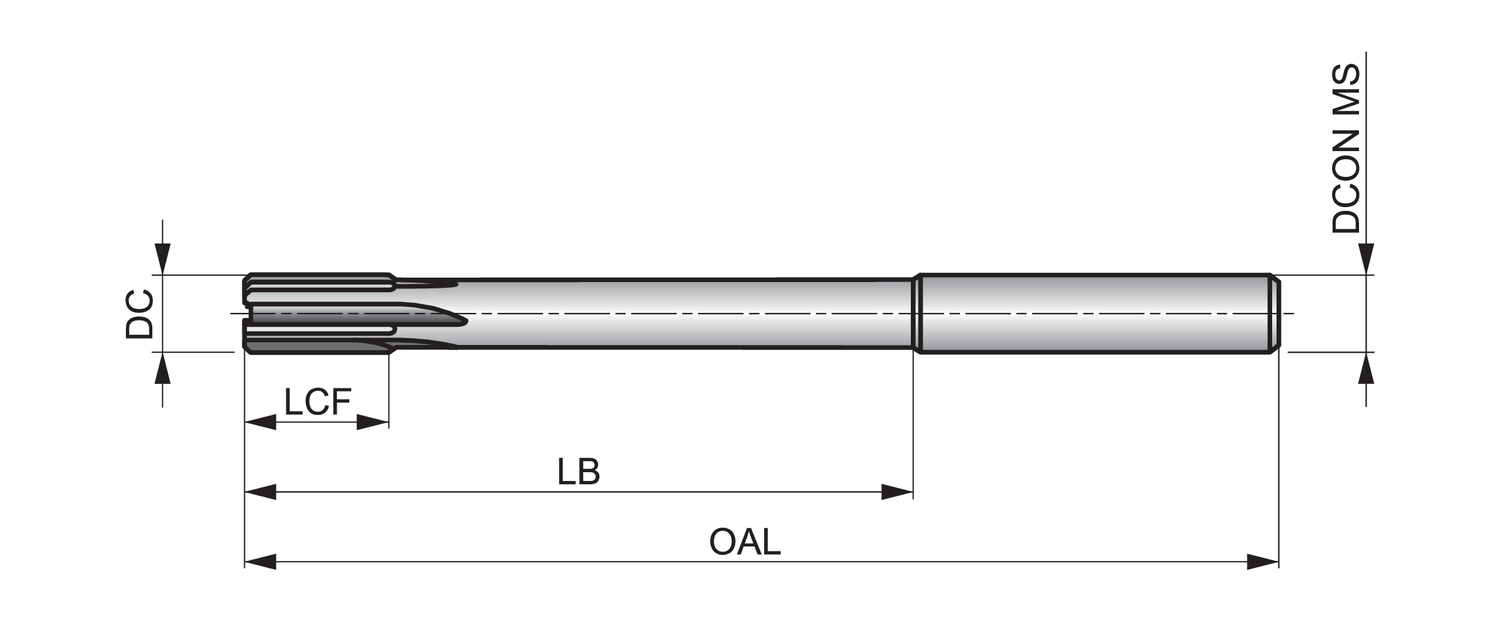

B44110.0 — Line Drawing PDF Download
