SKU DOR5987166
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$374.23 CAD - $374.23 CAD
$374.23 CAD
$374.23 CAD - $374.23 CAD
$374.23 CAD

Sold in packs of: 1

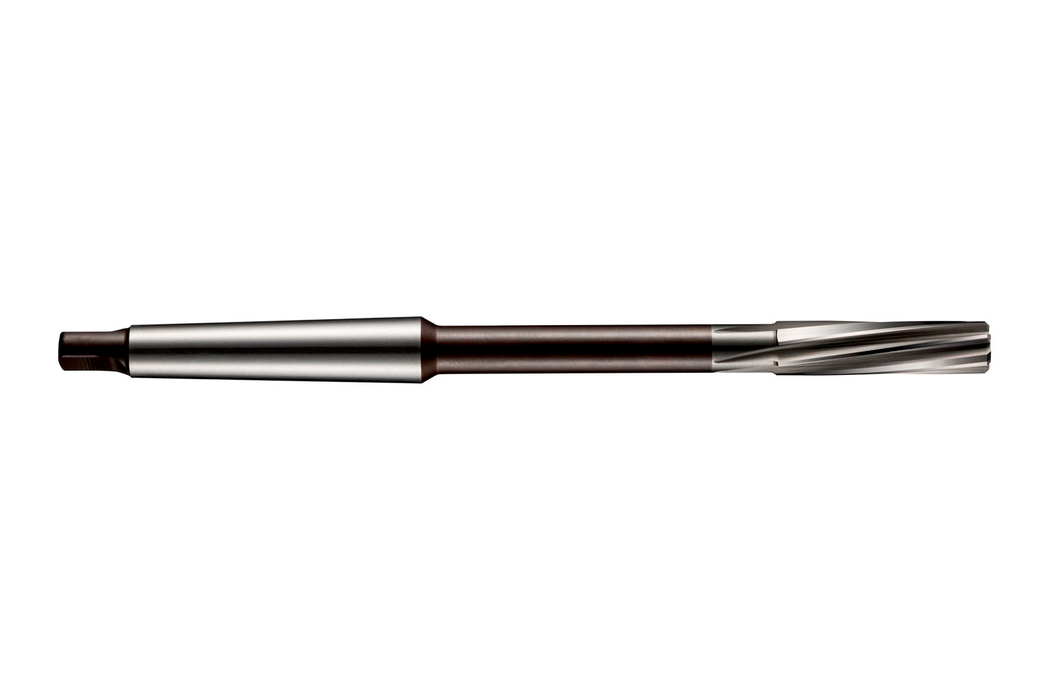

Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a Morse taper shank, diameter 12.00mm with an overall length of 182mm, a flute length of 44mm and 116.5mm reach with neck relief, according to DIN 8094 standard for reaming precise holes within H7 tolerance, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B41112.0
GradeBright
Product Number5987166
Product FamilyB411
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)7.1654"
Overall Length — mm (OAL)182.0 mm
Flute Length — mm (LCF)44.0 mm
Number of Flutes (NOF)6
Tool Information
ShankMorse Taper Shank
Direction of ToolRight
StandardDIN 8094
Reference Numbers
EDP Number53140
EAN7320760053140
File Type Download

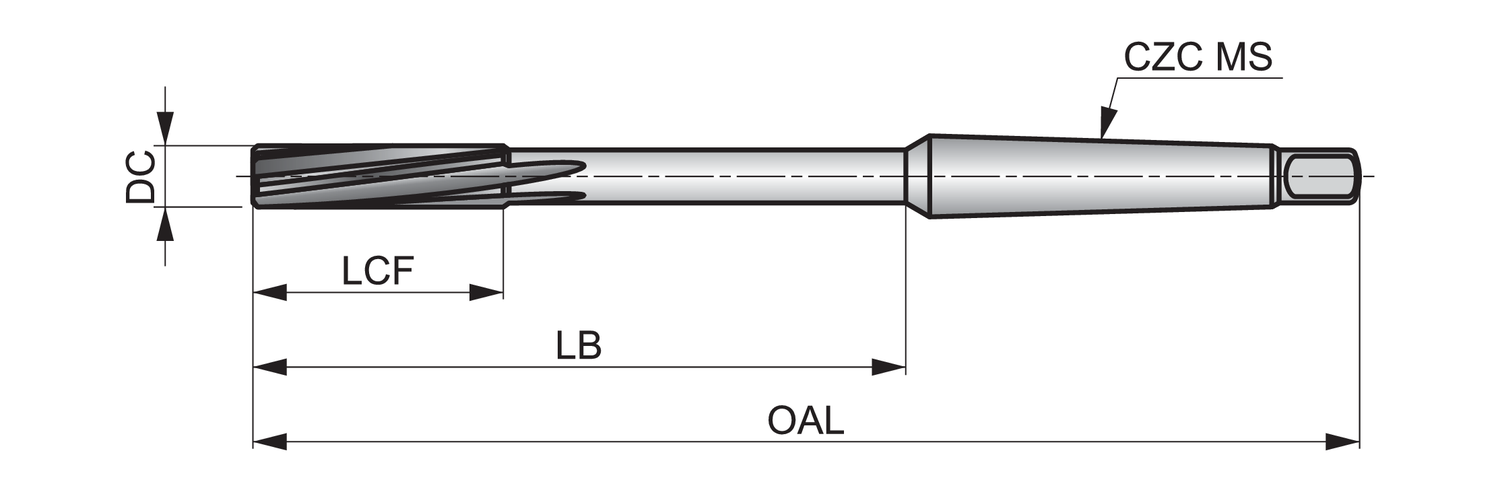

B41112.0 — Line Drawing PDF Download
