B610N19

B610N19

SKU DOR8157202
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.36 - $25.36
$25.36
$25.36 - $25.36
$25.36

Sold in packs of: 1

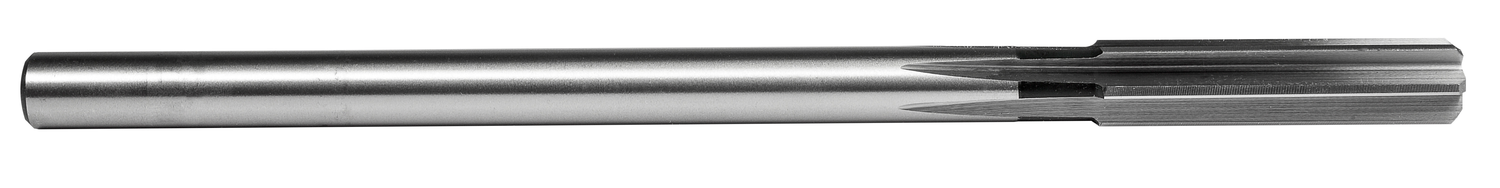

Chucking reamer with straight flutes and a cylindrical shank, diameter 0.1660" (N19) with an overall length of 4.1/2" and a flute length of 1.1/8", manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming precise holes, HSS with bright finish for machining free machining steel, copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B610N19
GradeBright
Product Number8157202
Product FamilyB610

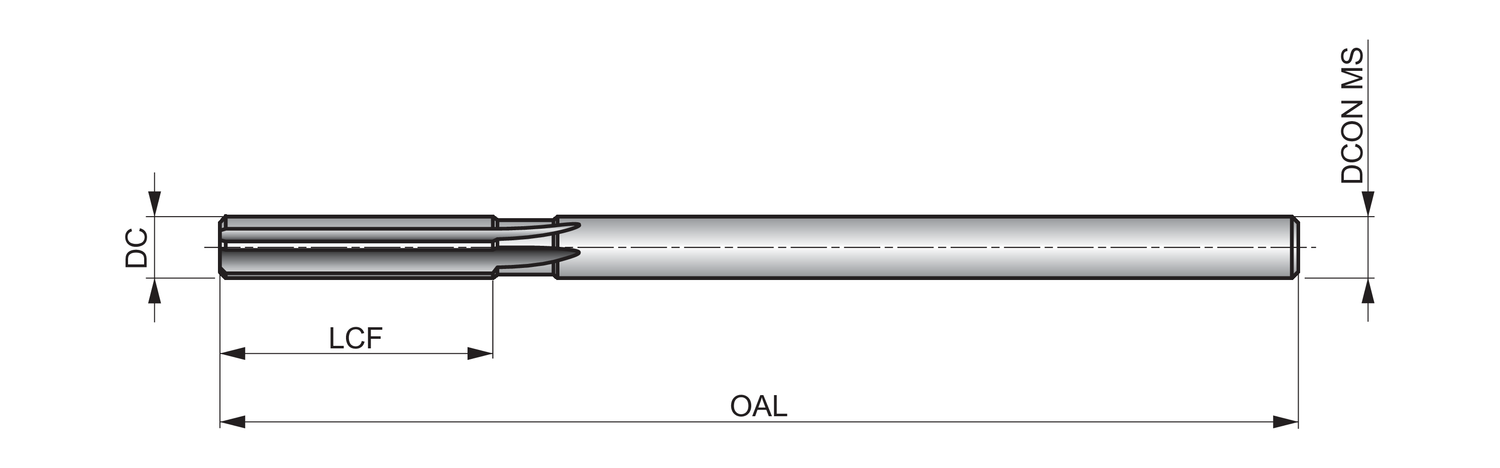

Dimensions
Cutting Diameter — in (DC)0.166"
Cutting Diameter — mm (DC)4.22 mm
Overall Length — in (OAL)4.5"
Overall Length — mm (OAL)114.3 mm
Flute Length — in (LCF)1.125"
Flute Length — mm (LCF)28.58 mm
Connection Dia. — in (DCON)0.1595"
Connection Dia. — mm (DCON)4.05 mm
Number of Flutes (NOF)6
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number8157202
EAN3603607002032
File Type Download
B610N19 — Line Drawing PDF Download
