P5233.0X3.0

P5233.0X3.0

SKU DOR7806109
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.46 - $13.46
$13.46
$13.46 - $13.46
$13.46

Sold in packs of: 1

Cone burr (M shape), diameter 3mm with 15mm length of cut, 38mm overall length and 3mm shank, solid carbide with bright finish, AS single cut flute style with light left-hand cross cut for enlarging holes, surface-finishing and cutting narrow angles in hard-to-reach areas in high-temperature alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)P5233.0X3.0
GradeBright
Product Number7806109
Product FamilyP523
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Usable Length — mm (LU)15.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardWork Norm
Reference Numbers
EDP Number7806109
EAN7320760886182
File Type Download

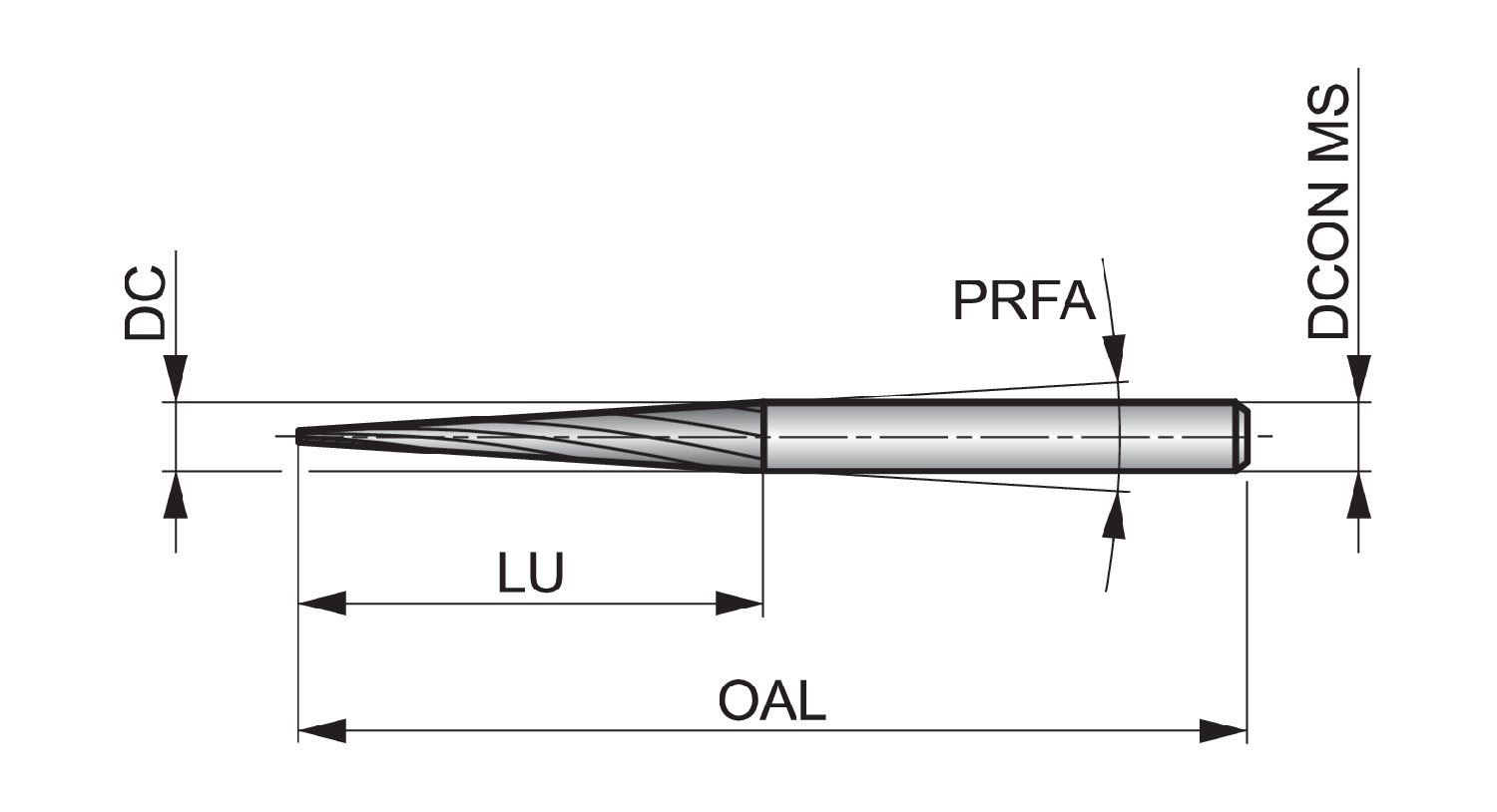

P5233.0X3.0 — Line Drawing PDF Download
