ADEX 11T308SR-HF:8215
ADEX 11T308SR-HF:8215

ADEX 11T308SR-HF:8215

SKU DOR6800779
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.30 CAD - $15.30 CAD
$15.30 CAD
$15.30 CAD - $15.30 CAD
$15.30 CAD

Sold in packs of: 10

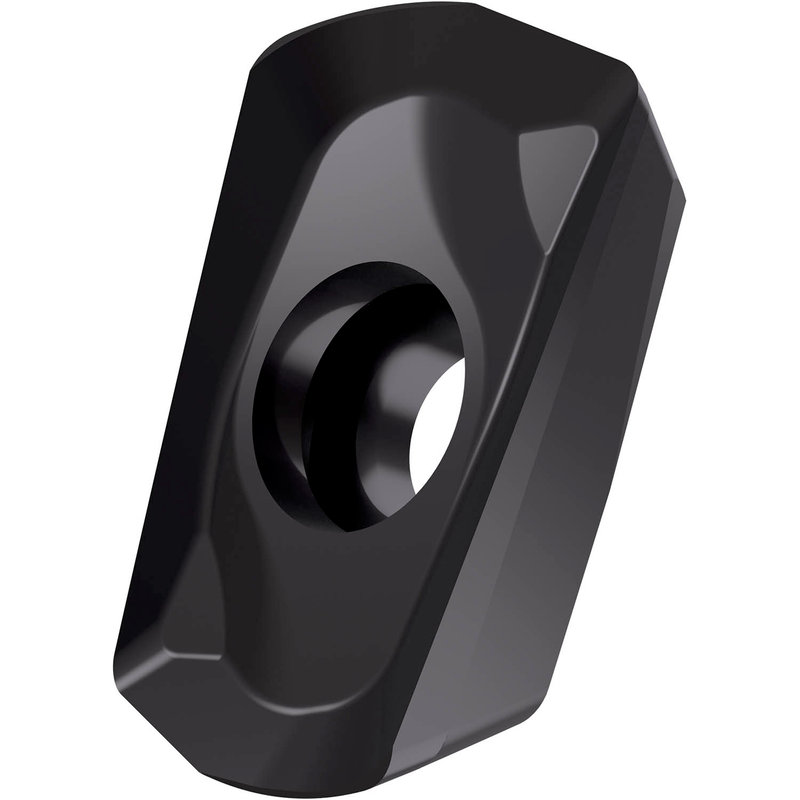

Single-sided milling insert ADEX 11T3, 85° parallelogram and high-feed design for a maximum depth of cut of .0236", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10-P20 for machining of steel with shoulder mills SAD11E

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ADEX 11T308SR-HF:8215
Grade8215
Chipbreaker (CBMD)HF
Product Number6800779
Product FamilyADEX 11-HF
Insert Geometry
Insert DesignADEX
Insert Shape Code (SC)A - parallelogram 85° included angle
Insert Thickness — in (S)0.15"
Insert Thickness — mm (S)3.82 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.024"
Depth of Cut Max — mm (APMX)0.6 mm
Tool Information
Reference Numbers
EDP Number6800779
EAN3603602993205
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
File Type Download

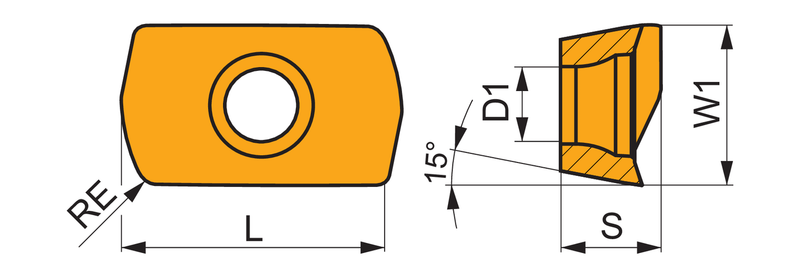

ADEX 11T308SR-HF:8215 — Line Drawing PDF Download
