125E3R165C100-ISRC10-C
125E3R165C100-ISRC10-C
125E3R165C100-ISRC10-C

125E3R165C100-ISRC10-C

SKU DOR7455360
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$440.00 CAD - $440.00 CAD
$440.00 CAD
$440.00 CAD - $440.00 CAD
$440.00 CAD

Sold in packs of: 1

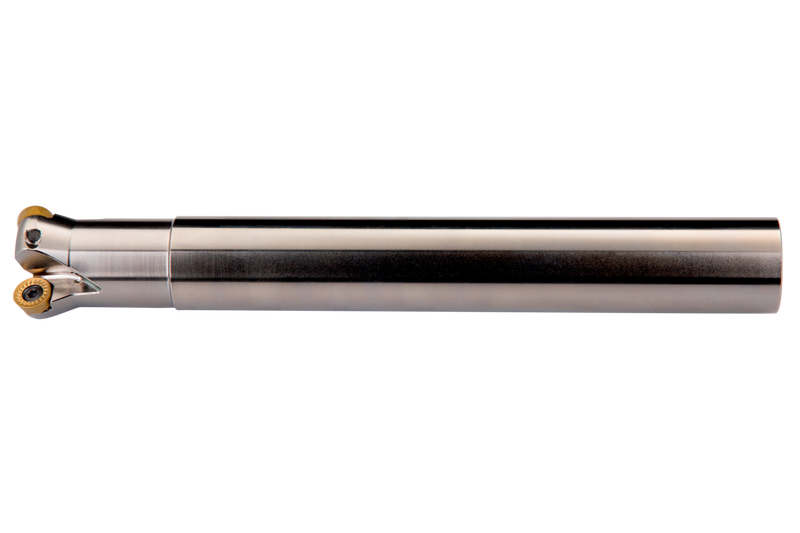

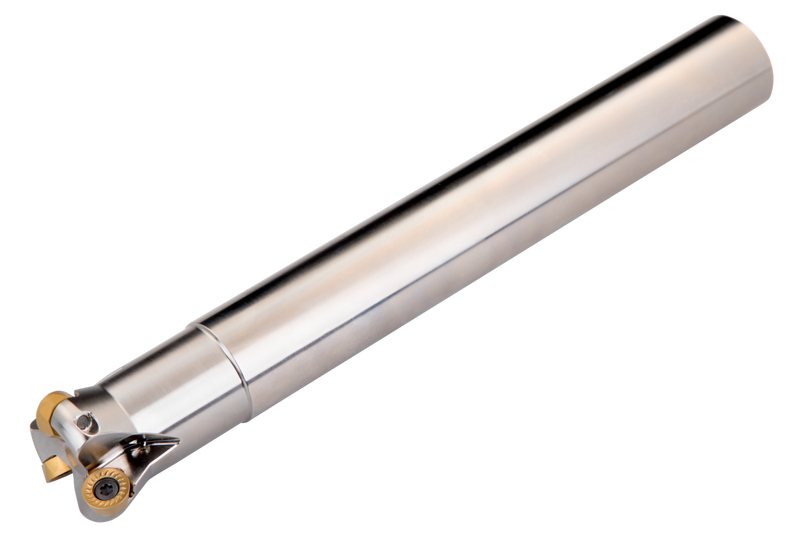

Copy face mill with double negative geometry which utilises 3 off RCMT 10T3MO.. single-sided inserts, cutting diameter 1.250'' with 1.000'' parallel shank according to DIN 1835A, 7.900'' overall length, through coolant for face milling, copy milling, ramping, helical milling and plunge milling with a maximum depth of cut of .197''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125E3R165C100-ISRC10-C
Product Number7455360
Product FamilyISRC10

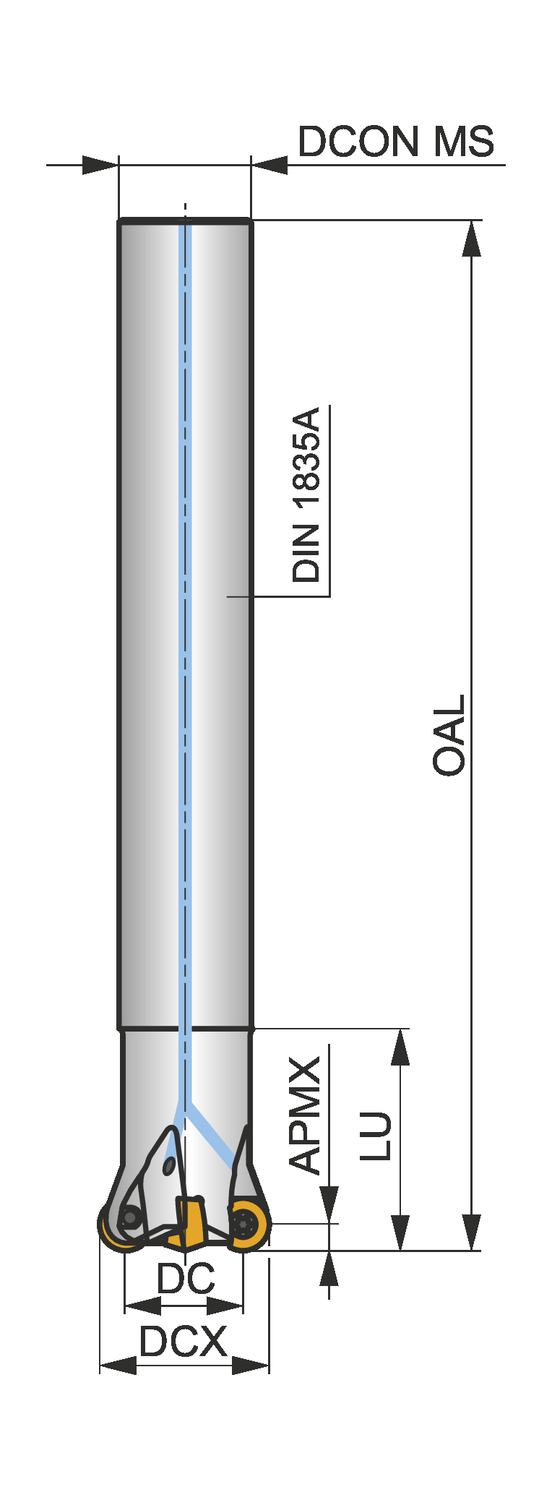

Dimensions
Cutting Diameter — in (DC)0.856"
Cutting Diameter — mm (DC)21.7 mm
Overall Length — in (OAL)7.9"
Overall Length — mm (OAL)201.0 mm
Usable Length — in (LU)1.654"
Usable Length — mm (LU)42.01 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSRC10
ShankCylindrical shank DIN 1835A
Direction of ToolRight
Through Coolant Yes
Reference Numbers
EDP Number7455360
EAN3603603388406
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Not recommended
S — High Temperature Alloys Primary use
H — Hardened Materials Primary use
File Type Download
125E3R165C100-ISRC10-C — 3D Model STP Download
125E3R165C100-ISRC10-C — 2D Model DXF Download
125E3R165C100-ISRC10-C — Line Drawing PDF Download
