RNMG 860-081:T9415
RNMG 860-081:T9415

RNMG 860-081:T9415

SKU DOR8345567
by Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.57 CAD - $40.57 CAD
$40.57 CAD
$40.57 CAD - $40.57 CAD
$40.57 CAD

Sold in packs of: 10

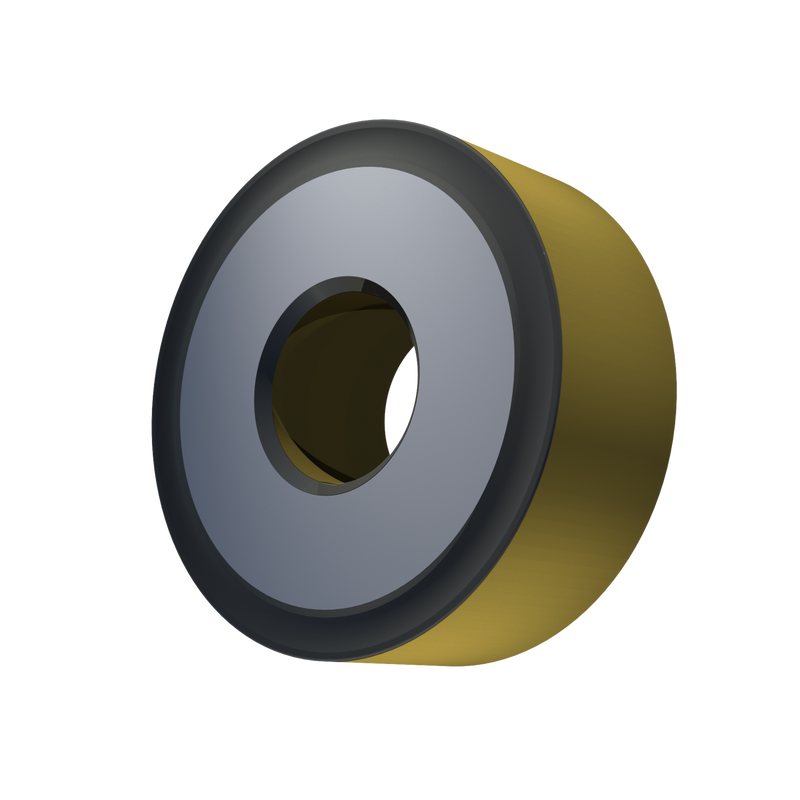

Double-sided negative turning insert, round with a diameter of 1", 3/8" thick, indexing accuracy according to ISO-tolerance class- M, chip-breaker 081, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide, for heavy to medium machining

For more information about this product, click here

Identification
Ordering Code (ANSI)RNMG 86-081:T9415
Product Name (ISO)RNMG 250900E-081:T9415
GradeT9415
Chipbreaker (CBMD)81
Product Number8345567
Product FamilyRNMG
Insert Geometry
Insert DesignRNMG
Insert Shape Code (SC)R - round
Insert Geometry
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Tool Information
Reference Numbers
EDP Number8345567
EAN3603604107846
File Type Download

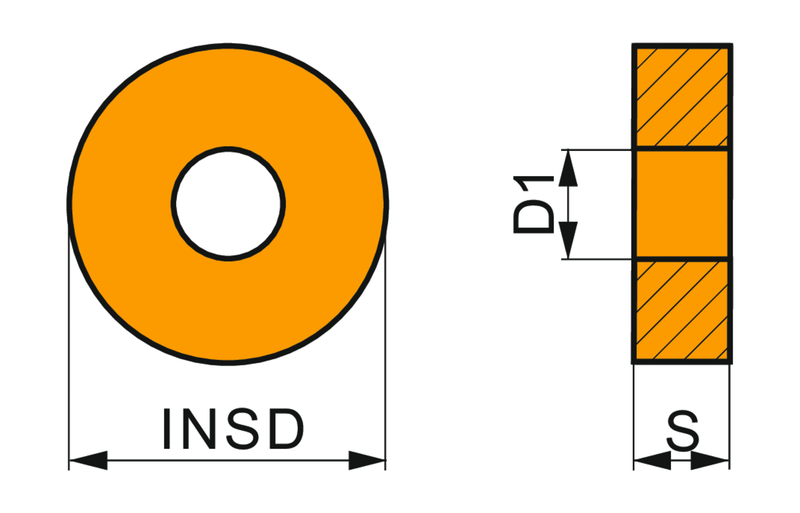

RNMG 860-081:T9415 — Line Drawing PDF Download
