EP205-40

EP205-40

by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals

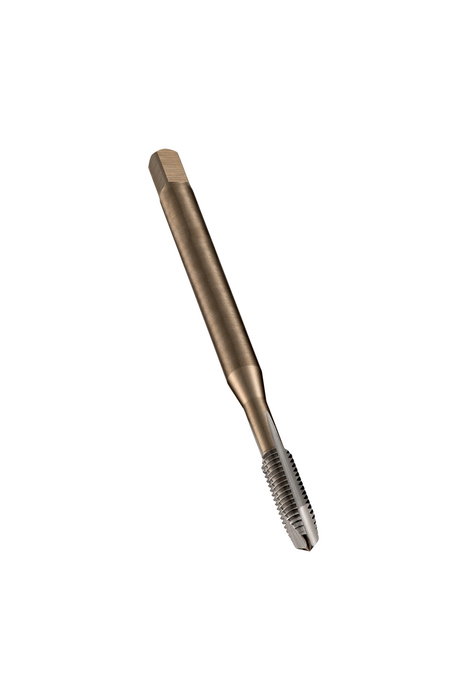

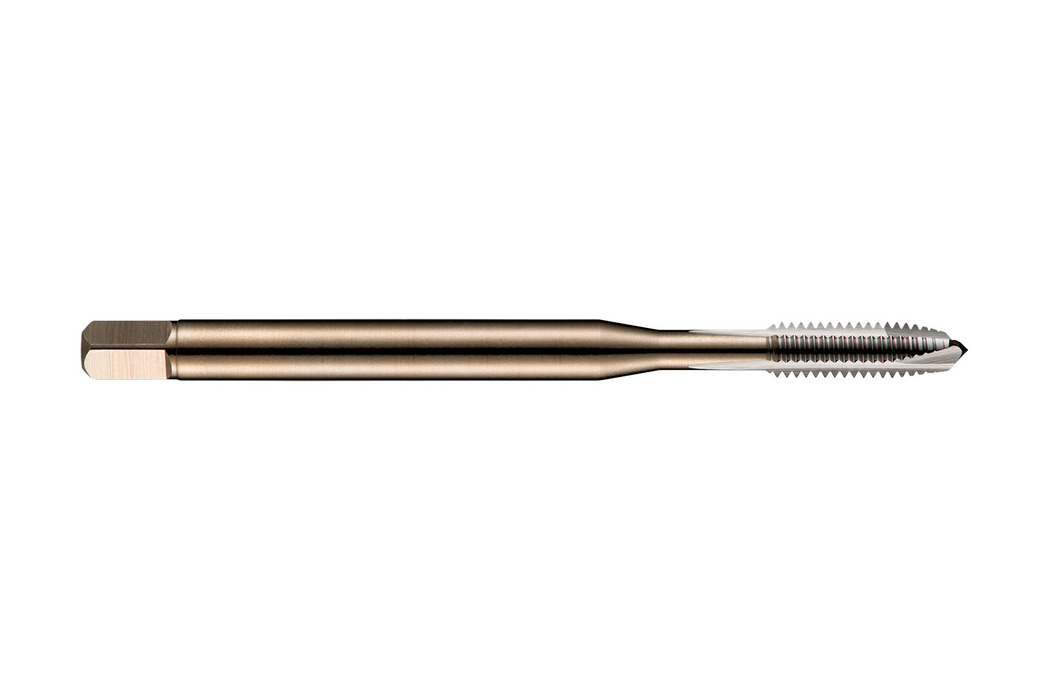

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5 with 40 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 3.5mm shank and 2.7mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$43.28 - $43.28
$43.28 - $43.28
$43.28
$43.28 - $43.28
$43.28
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.2047

Connetion Diameter: 0.1378

Tool Direction: Right

Diameter Size: 5

Thread Diameter - in: 0.125

Thread Diameter - mm: 3.175

TPI: 40.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Usable Length: 0.7087

Grade: Bright

EDP: 138038

EAN: 7320760138038

MFG Part Number: 5973737
